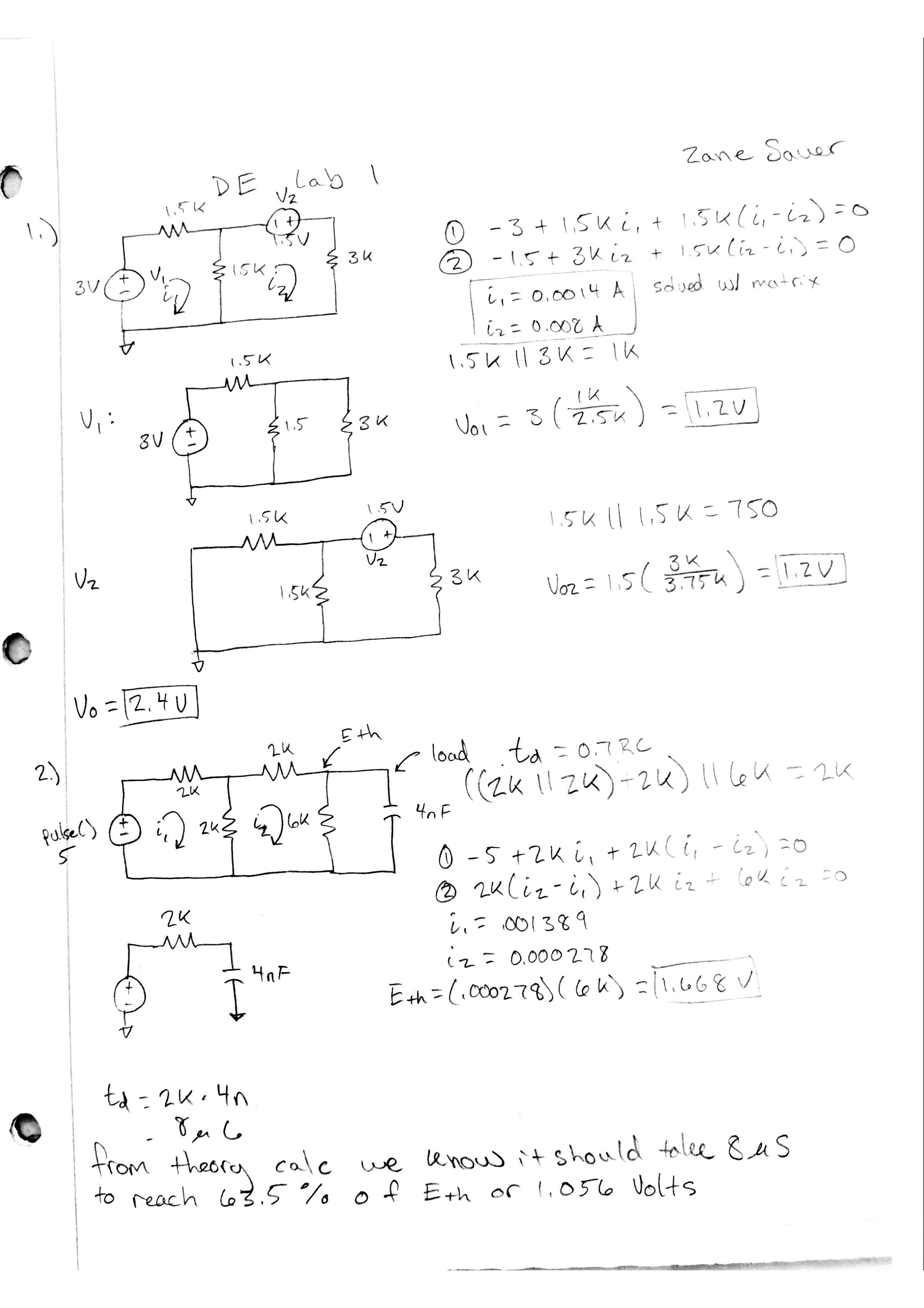

Figure 1: Hand calculations of problems 1 and 2, results are boxed.
![](img/Prob_1_plot.JPG)

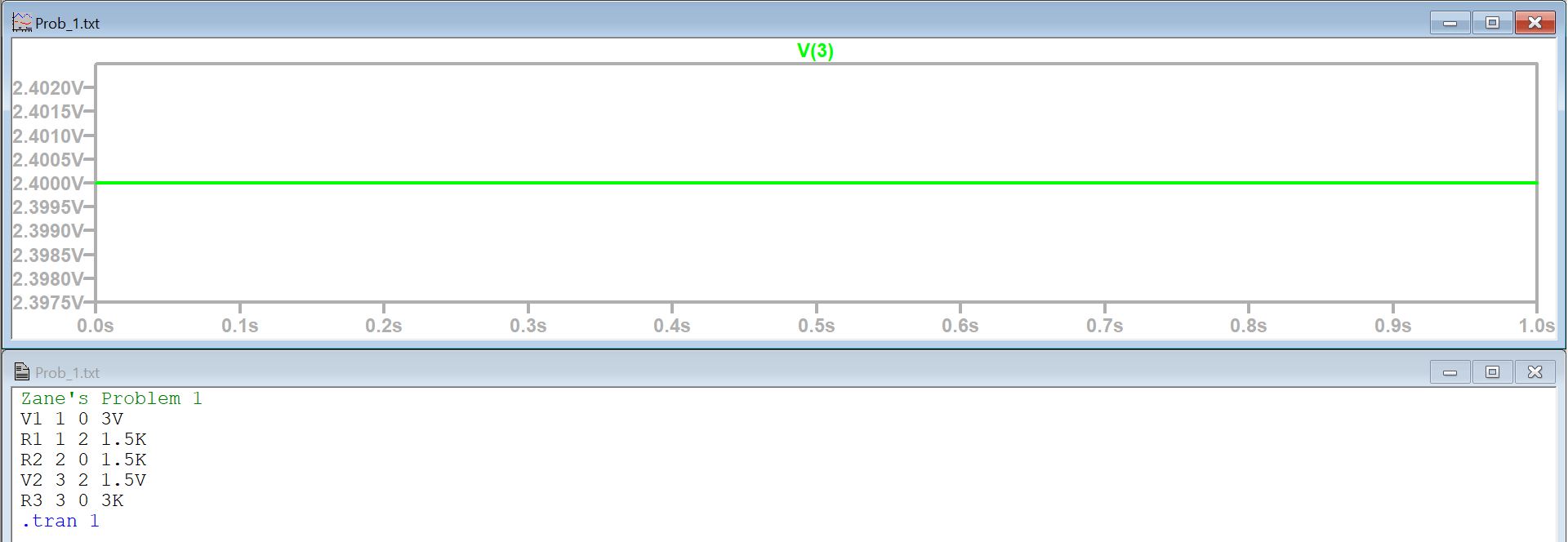

Figure 2: Results from problem 1, V3 represents the output voltage of the complete circuit.

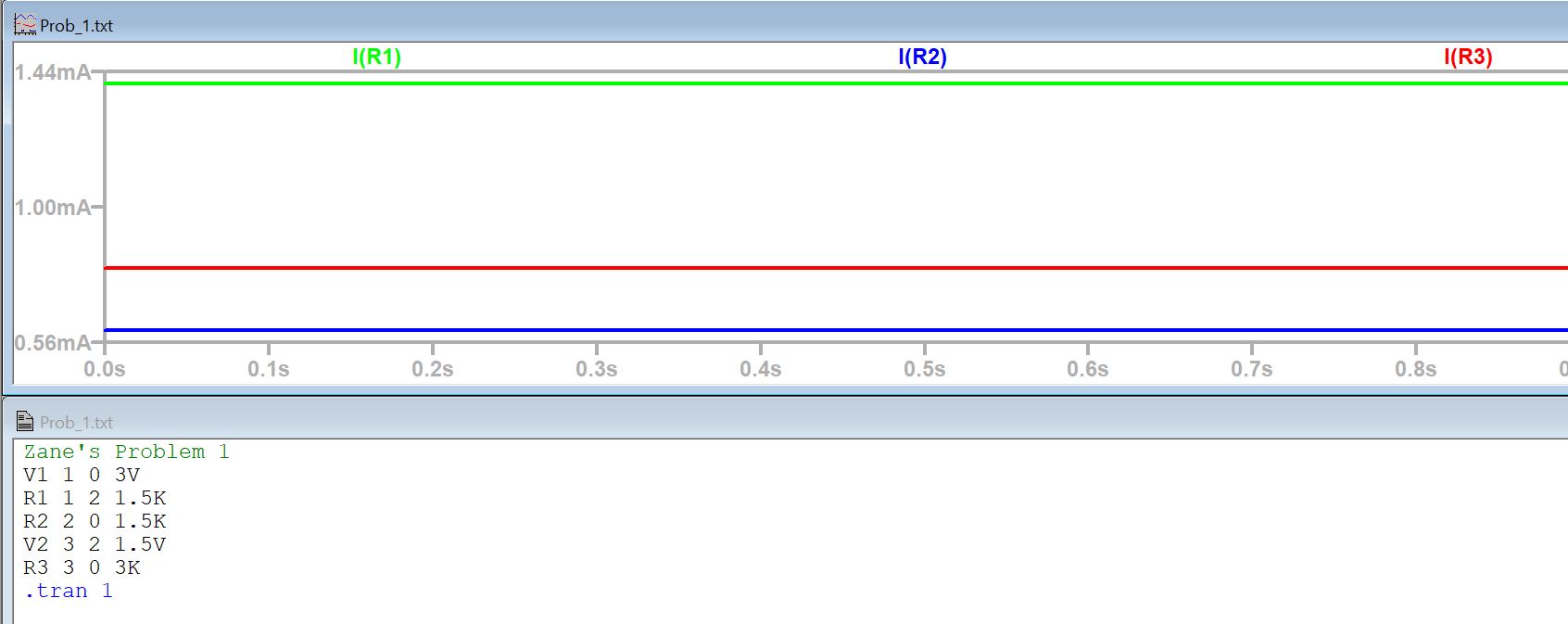

![](img/Prob_1_current_out.JPG)
Figure 3: Current output for problem 1. I(R1) = 1.4mA, I(R2) = 600 uA, I(R3) = 800 uA

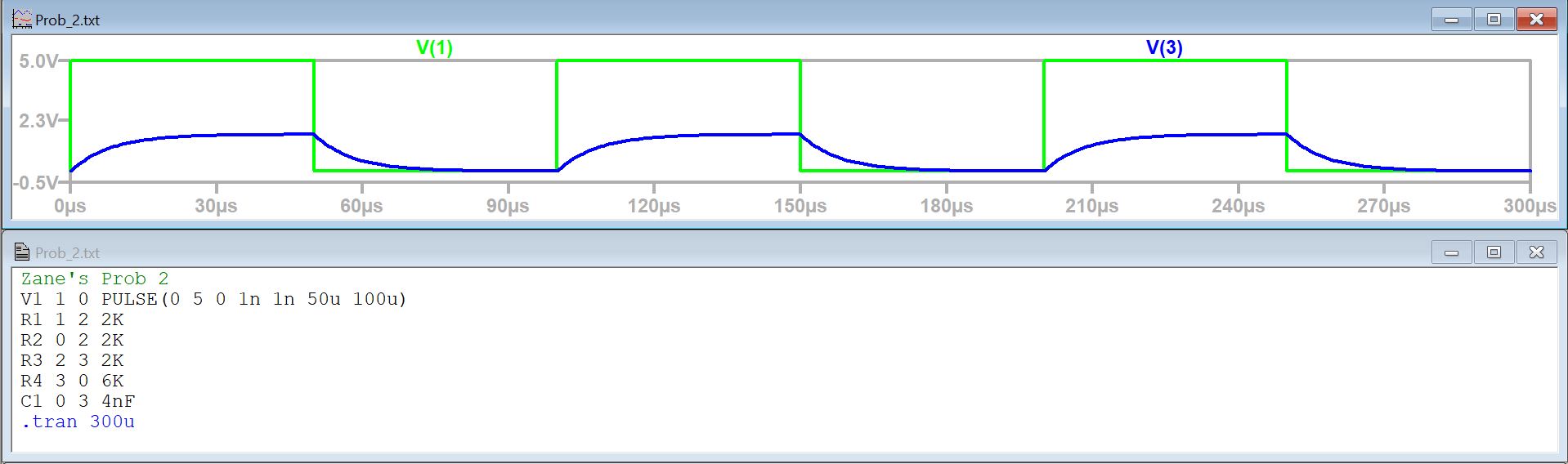

![](img/Prob_2_plot.JPG)
Figure 4: Output of load in problem 2

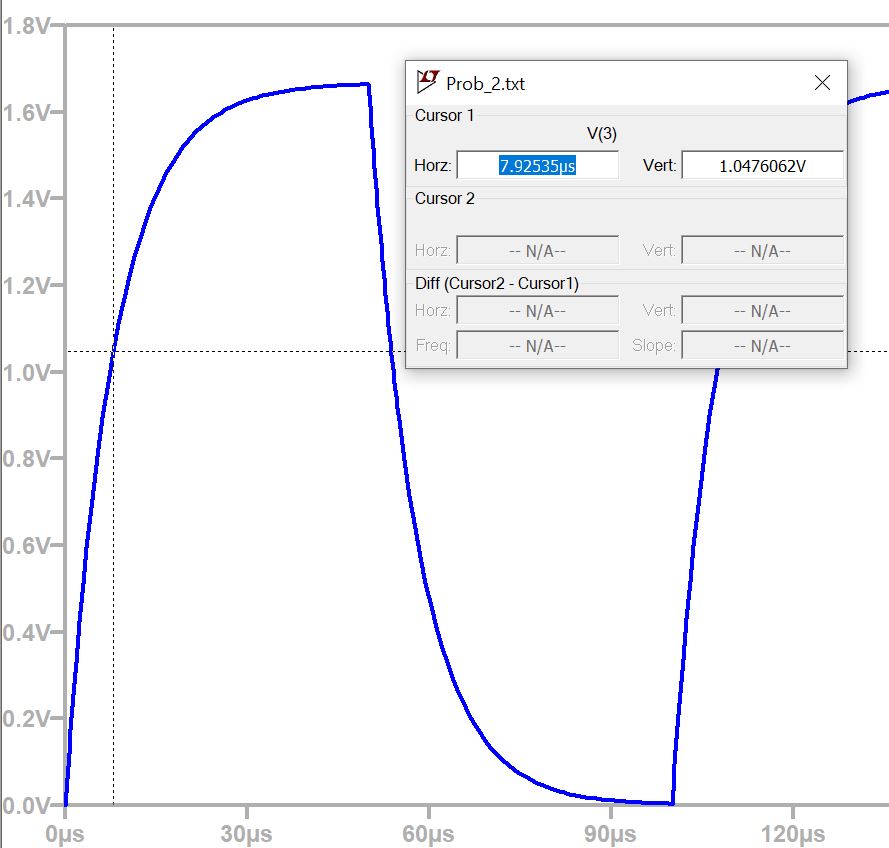

![](img/Td_confirmation.JPG)
Figure 5: Confirmation of time delay from calculations to simulation
