Lab 1
9/06/2021
Kyle P.
Collins
kpcollins@fortlewis.edu
ENGR338 Lab - Fall 2021
Introduction
In this lab we refamilarized ourselves with Superposition and Thevenin's circuit analysis.
Task 1:
![](lab1_superposition_results.PNG)

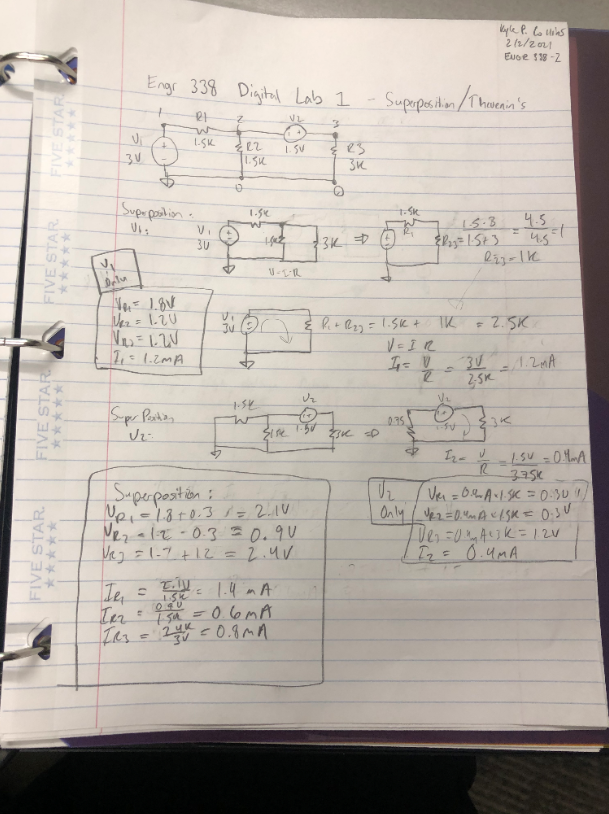

Fig 1. Use superpostion to caluclate the line voltage and currents in the circuit. (Task
1.1)
![](lab1_superposition_verfication.PNG)

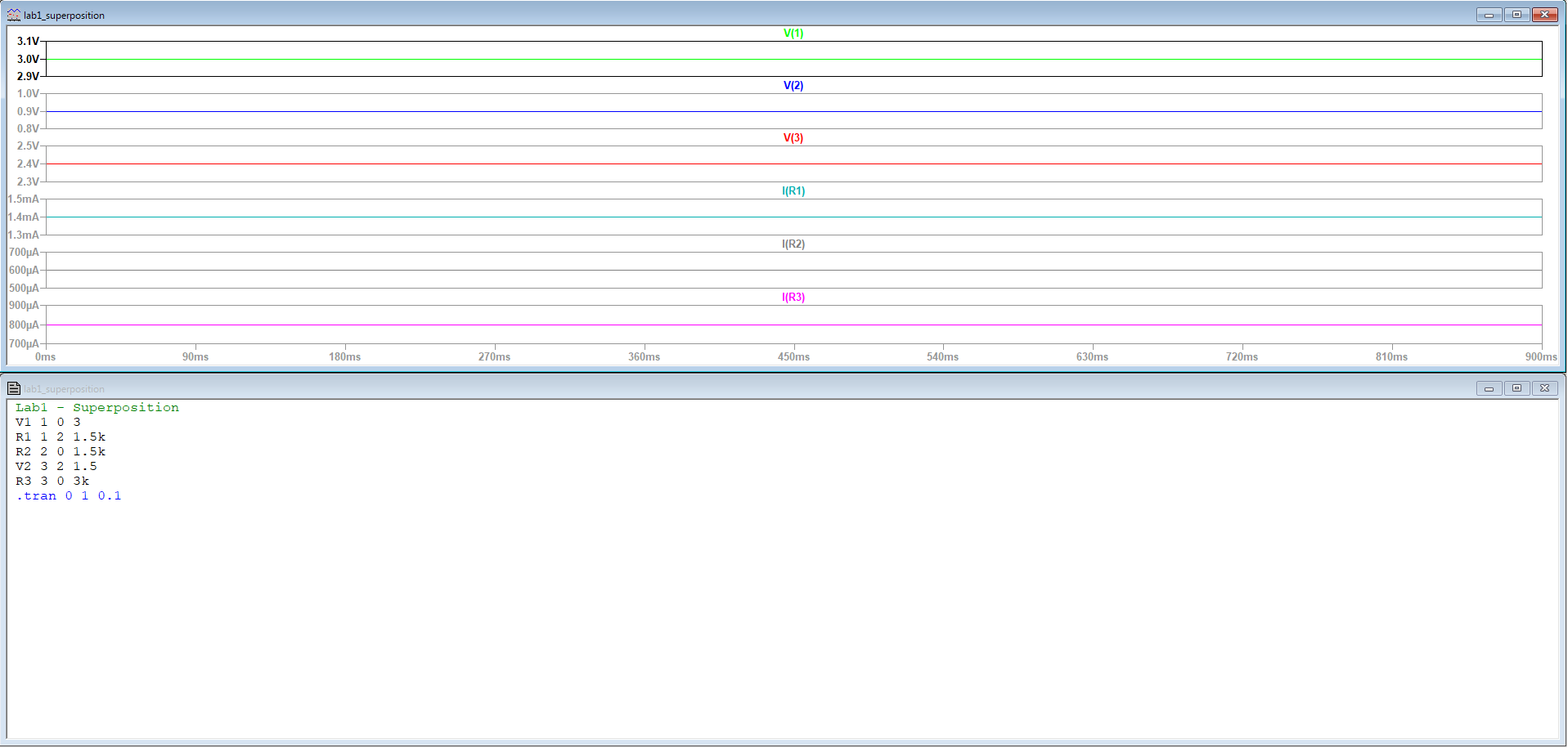

Fig 2. Code the circuit in LTSpice to verify your results. (Task 1.2)
Task 2:
![](lab1_thevenins_results.PNG)

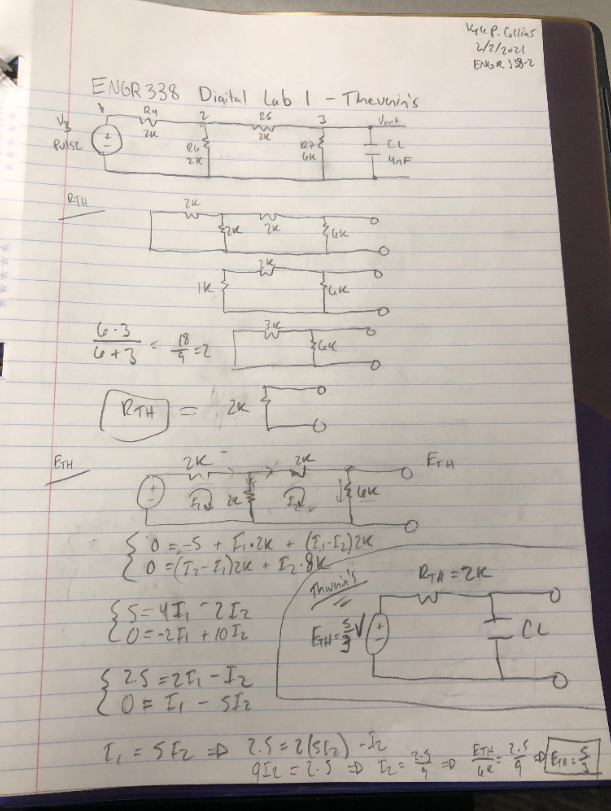

Fig 3. Use Thevenins to caluclate the line voltage and currents in the circuit. (Task
2.1)
![](lab1_thevenins_verfication.PNG)

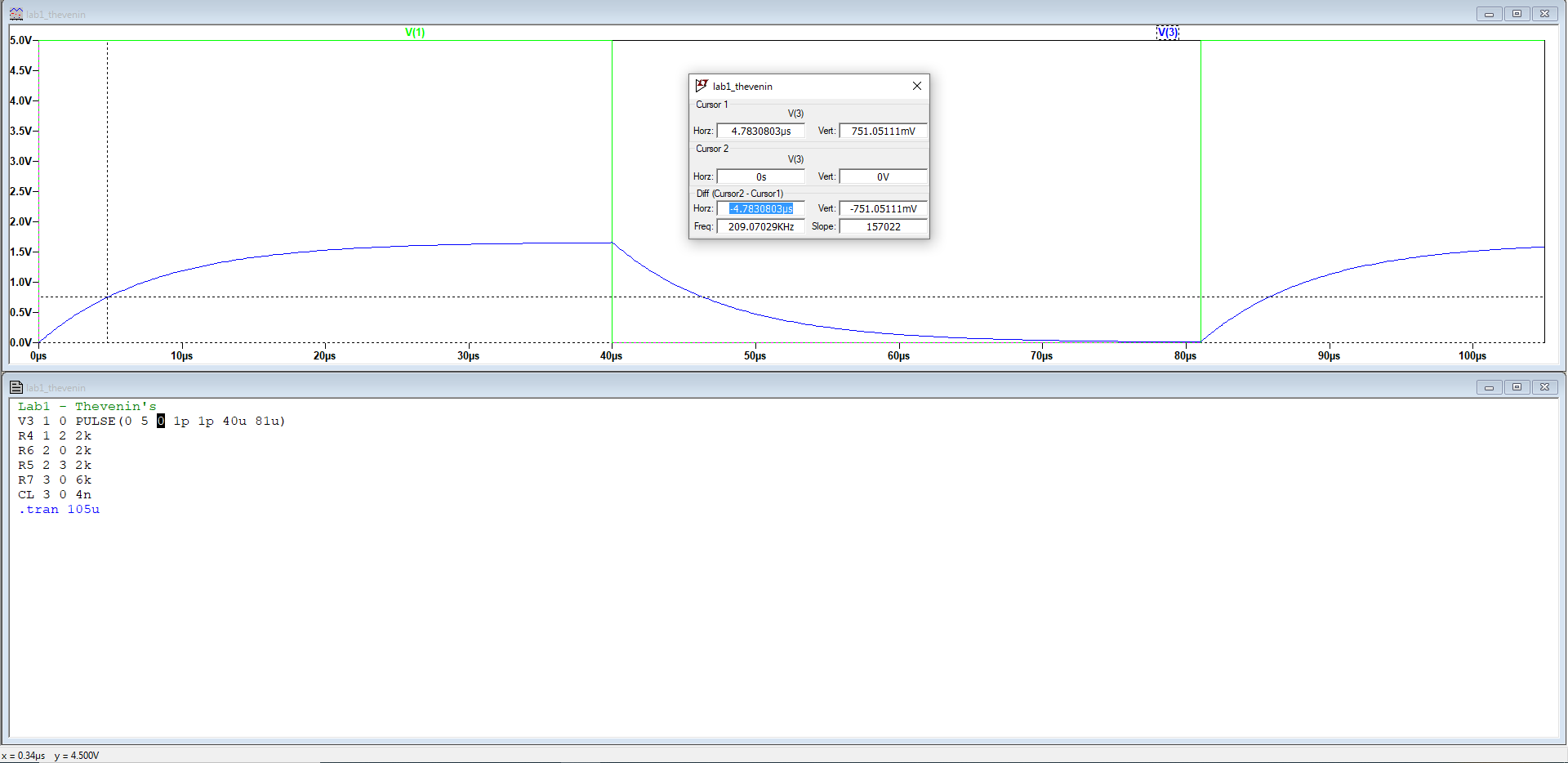

Fig 4. Code the circuit in LTSpice to verify your results. (Task 2.2)
Discussion
Good referesher on Superposition and Thevenin's circuit analysis, utilized my resources from last semester.
