CE433 Lab 2023 Spring
Lab 6: Basys
3 Board to Implement an LCD Driver Name: Vann Montoya Email:
bvmontoya@fortlewis.edu
Basys 3 Board to Implement an LCD Driver
Introduction
The purpose of this assignment is to use the FPGA to connect and communicate with the LCD display.
Materials and Methods Vivado
gVim Basys 3 FPGA
HJ1602A LCD Results
Task 1: Repeat the work on the textbook (40 points)
. Video 1: FPGA Displaying to the LCD different texts.
Task 2: Modify the code to show steady texts on the
display (30 points) Figure 1: FPGA Displaying a static text.
Task 3: Use ASCII code instead of letters in the
code to display 'Hello !!'. (30 points)

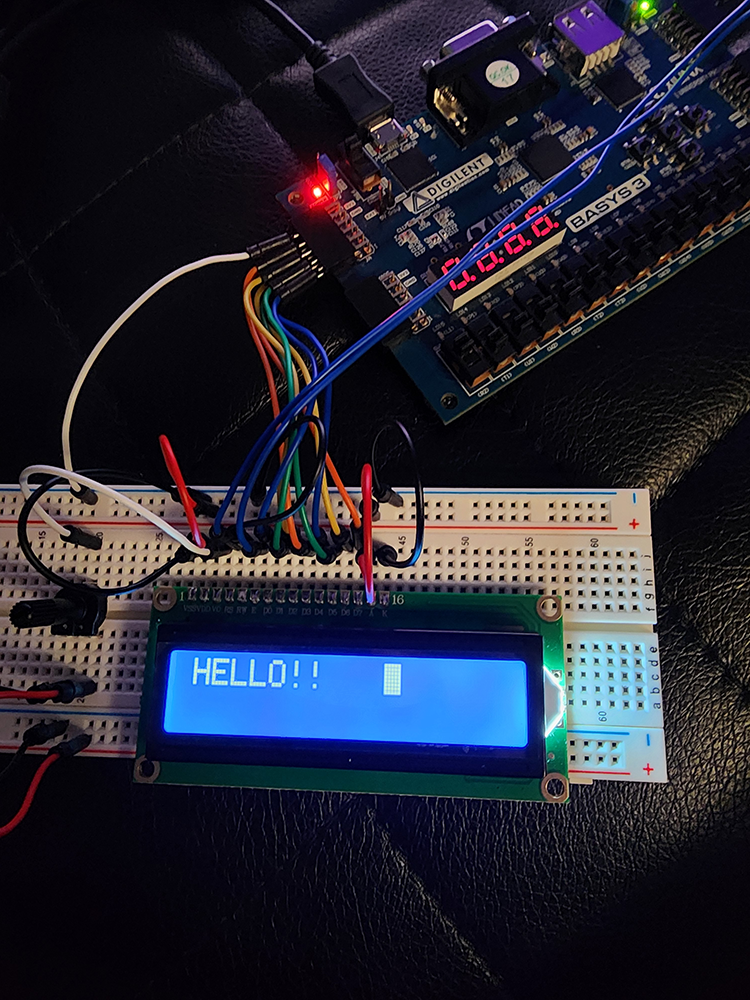

Figure 2: The FPGA displaying "HELLO !!"
