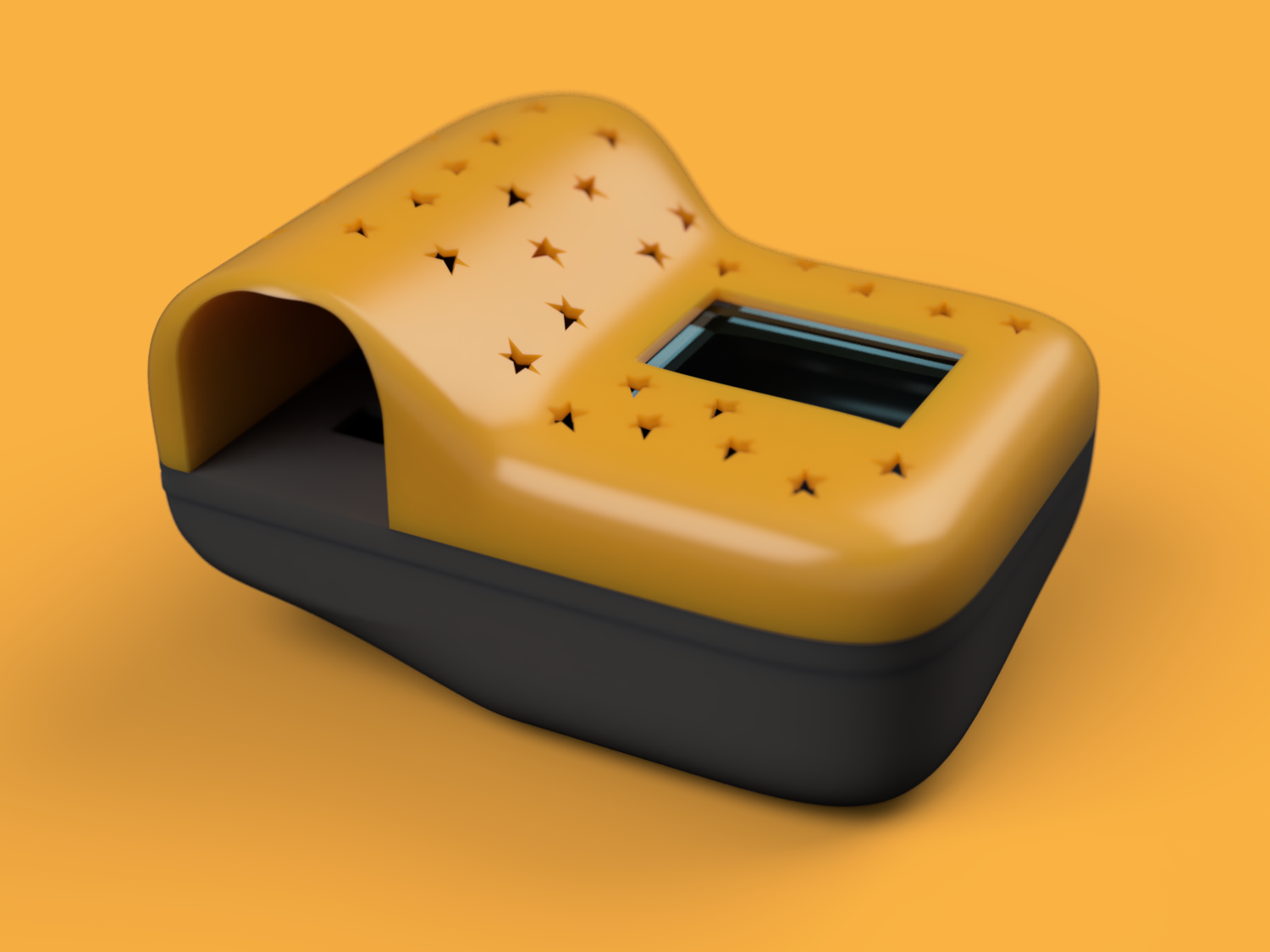

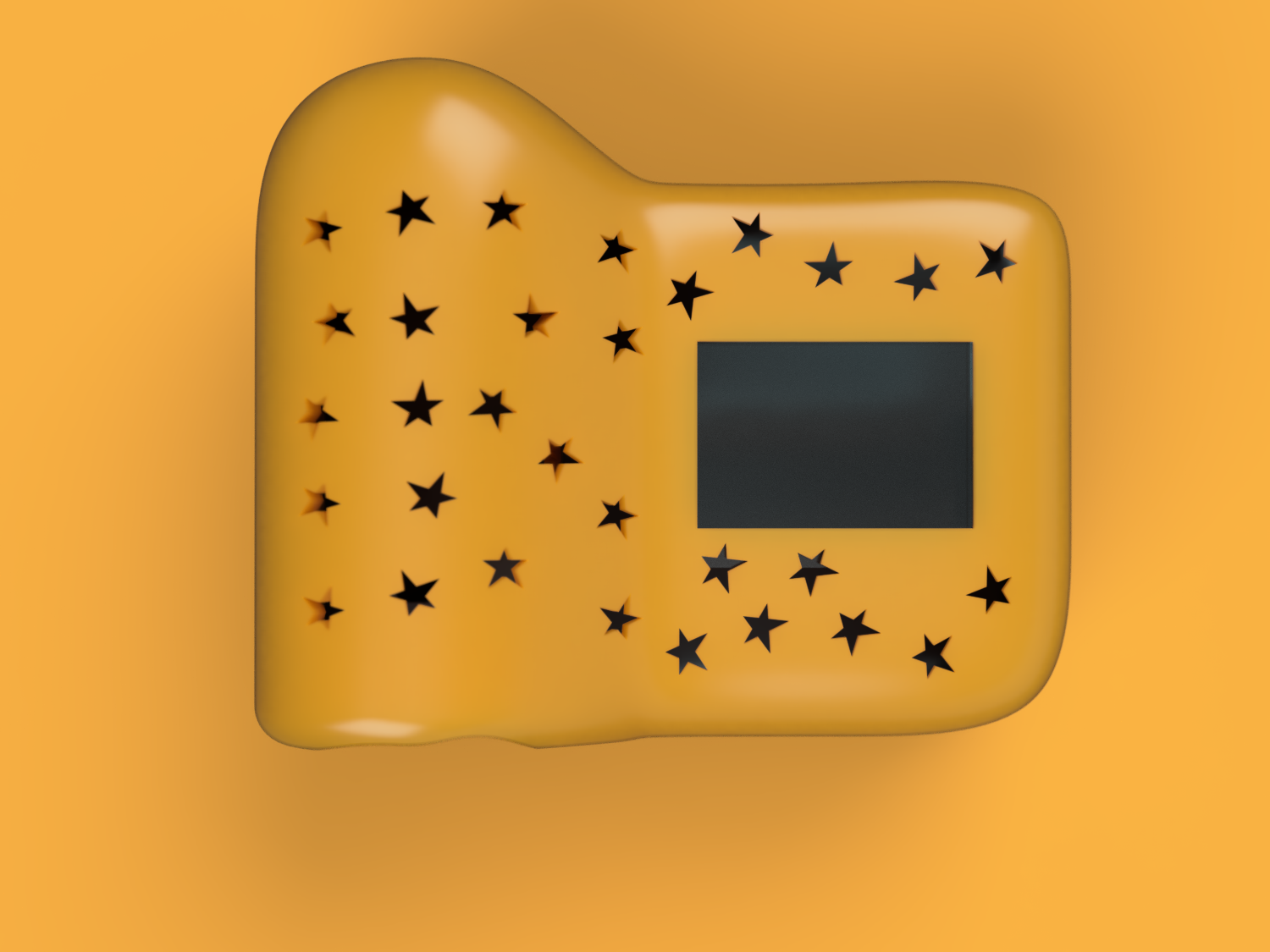

Heart Rate Monitor

The following document contains photo documentation of the development of the heart rate monitor

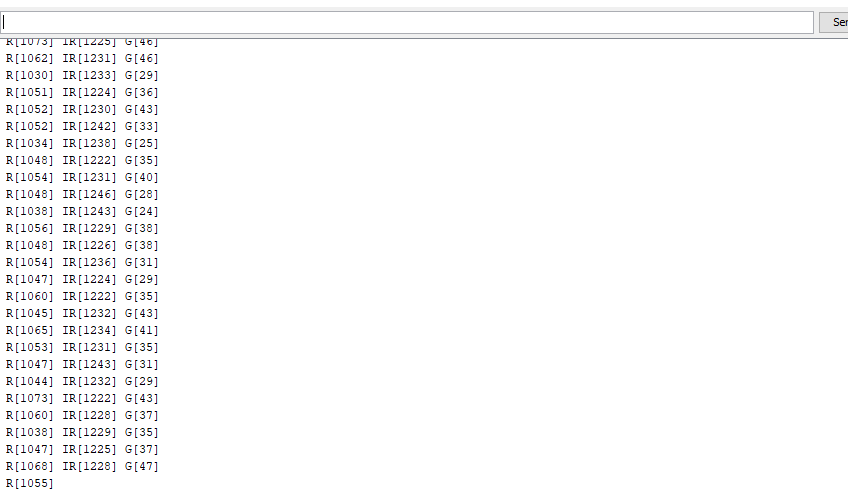

The first step was to test the IR sensor on the MAX 30102

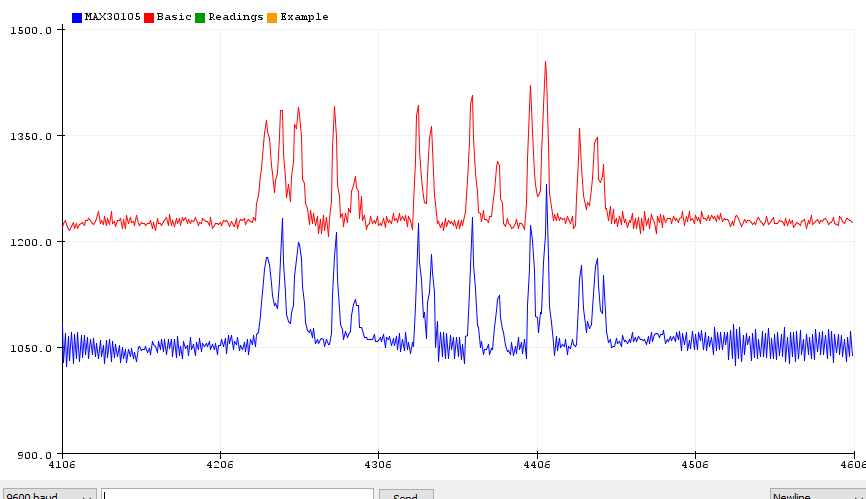

The next step was to  read the data on the serial plot.

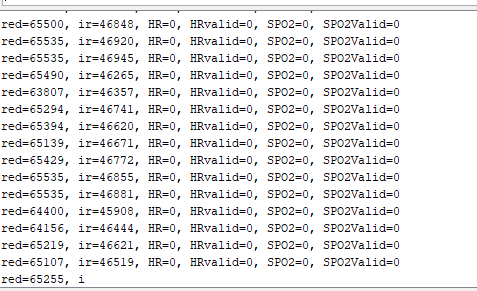

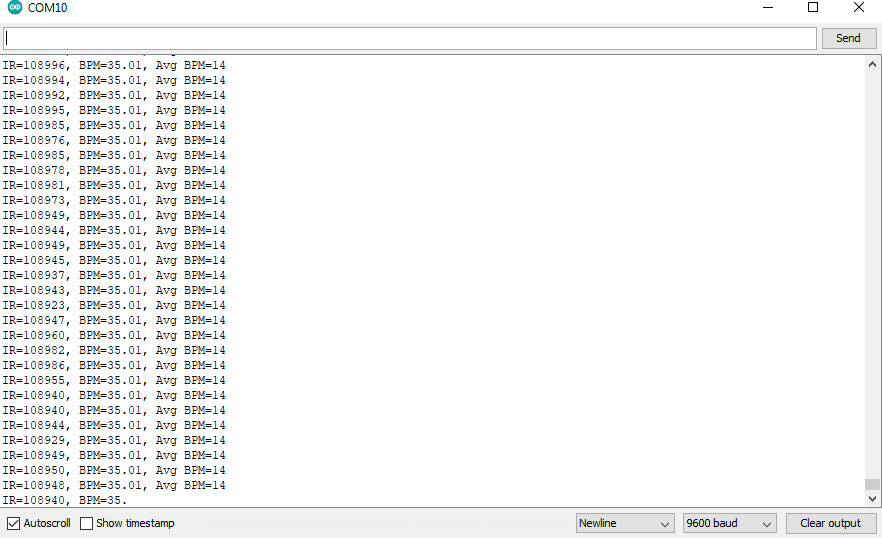

Then I logged the BPM and oxygen saturation.

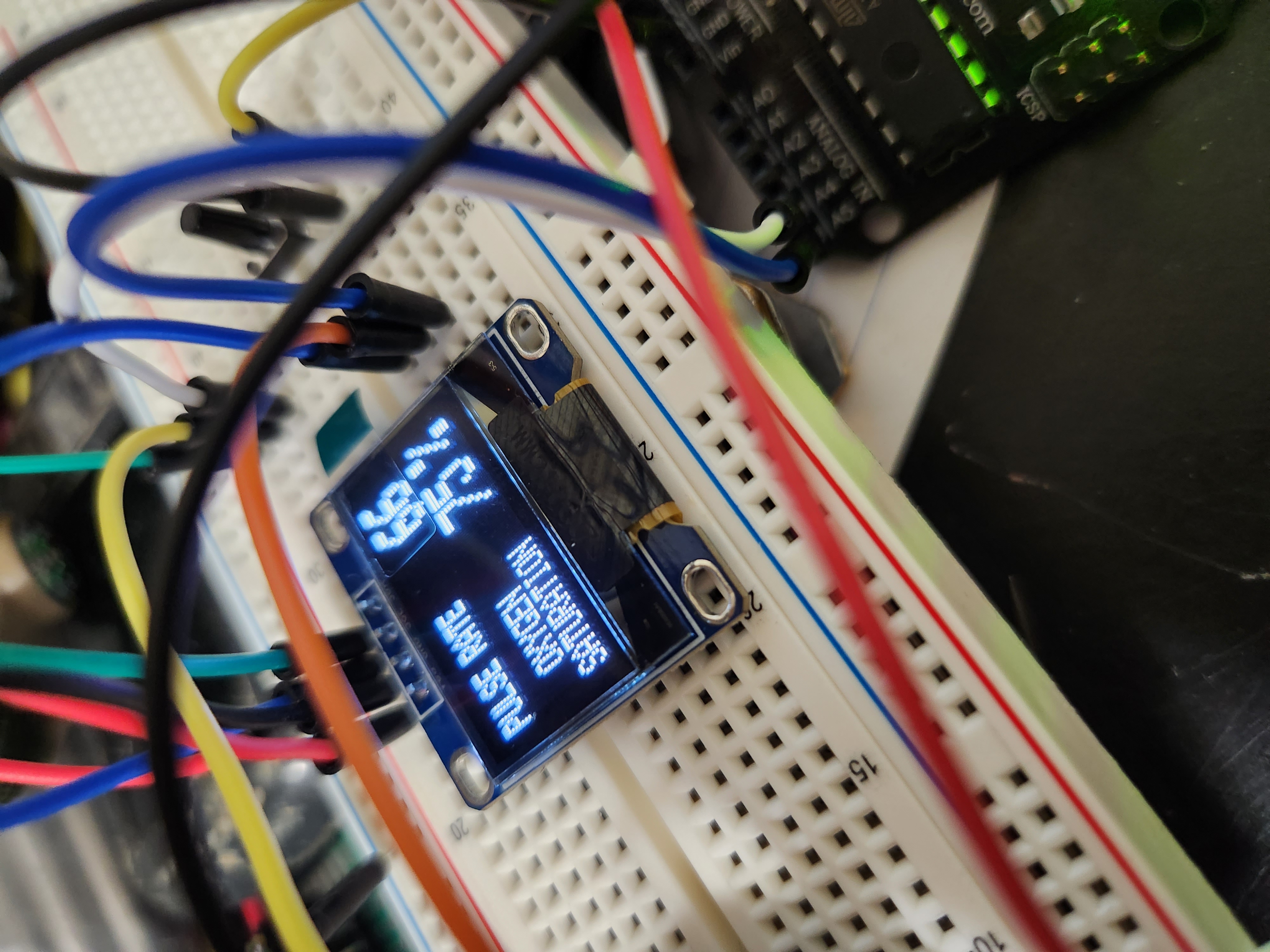

Next I showed the data on an LCD display.

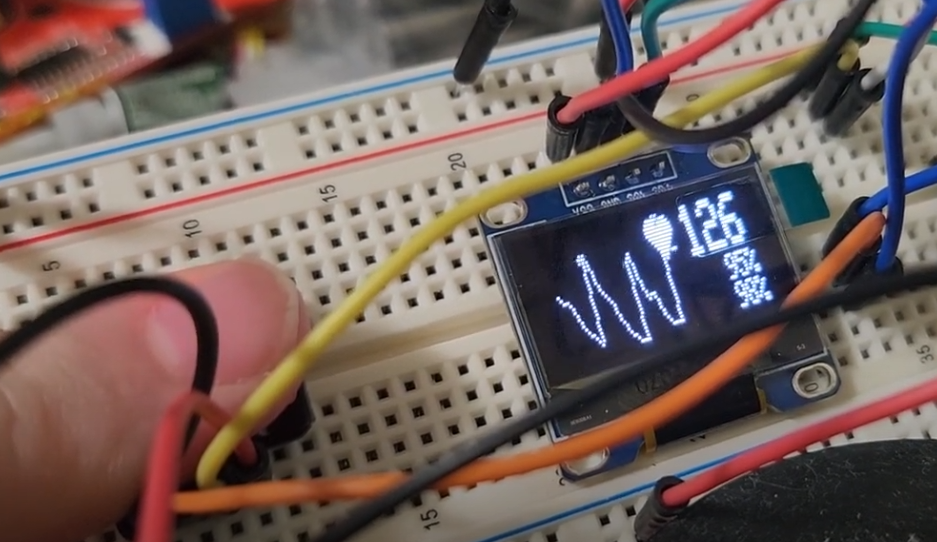

Finally, I changed the code to show the plot of the data along with the BPM and oxygen saturation.
