ENGR337 Lab 2020 Spring
Lab 5 Rectifiers and DC Regulators
Name: James Ferguson
Email: jwferguson@fortlewis.edu
Lab 5: Rectifiers and DC Regulators

Task 1
1.1

Built in potential = 547.00098mV

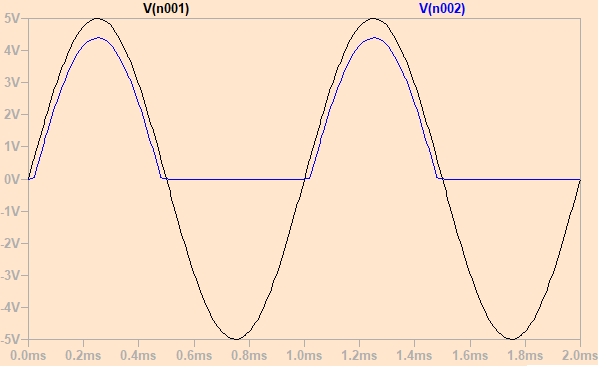

1.2

Built in potential = 600mV

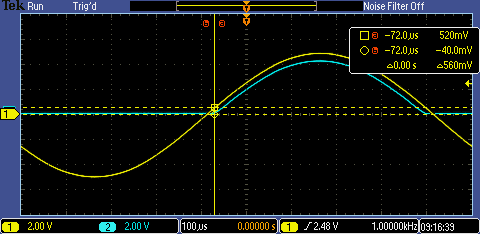

1.3

Built in potential = 480mv

Task 2

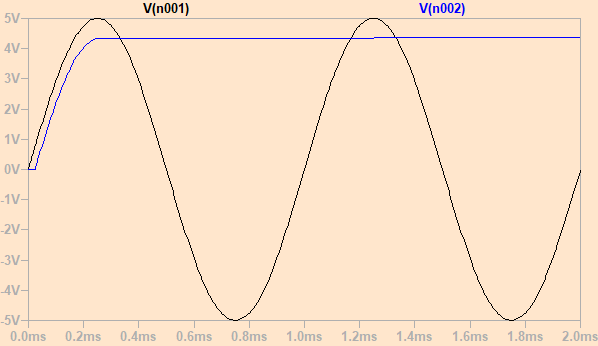

2.1

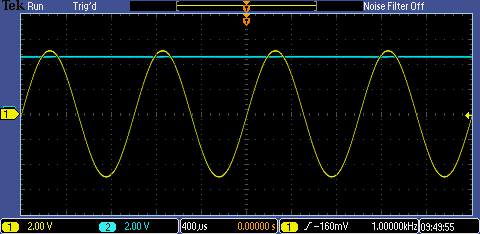

2.2


Task 3

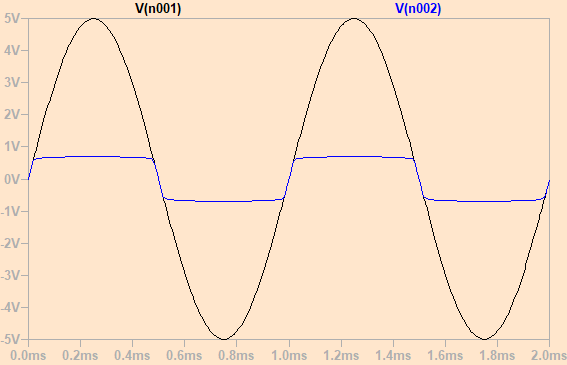

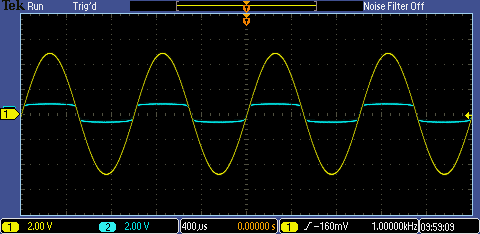

3.1



Once the supplied voltage goes above the diodes built in voltage the diodes short resulting in the voltage being clamped.

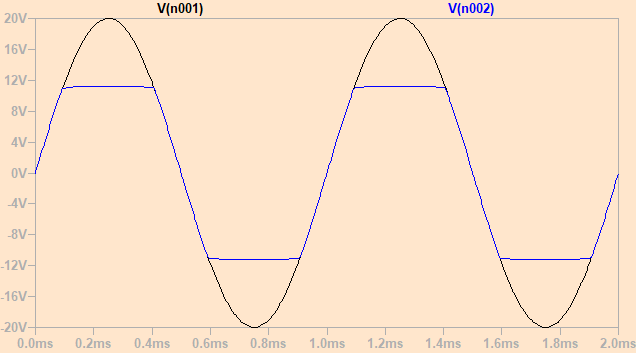

3.2



Once the supplied voltage goes above the diodes break down voltage the diodes short resulting in the voltage being clamped.

Task 4



This happens because capacitors are able to charge but not discharge.
