Lab 3: Filters and Amplifiers
Task 1

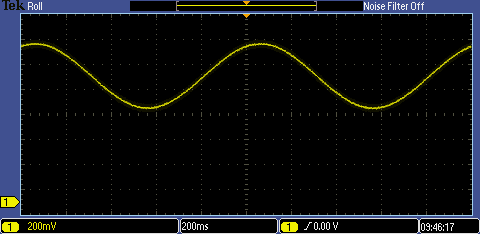

Function wave generator signal with DC coupling.
Task 2

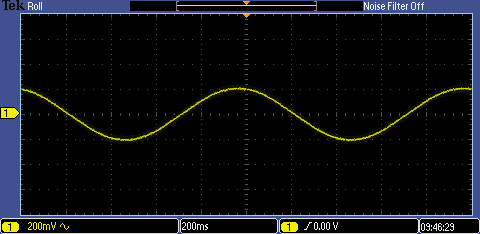

Function wave generator signal with AC coupling.
Task 3

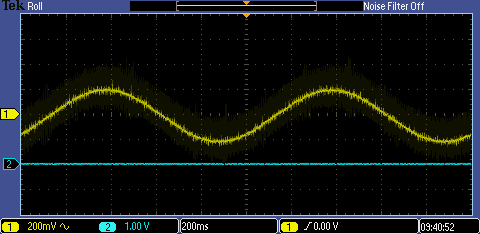

Function wave generator signal with noise and AC coupling.
Task 4

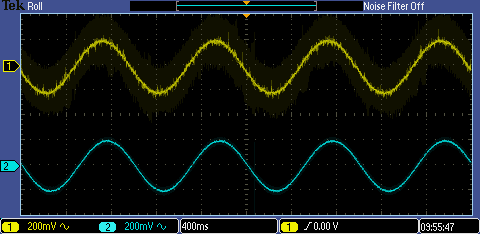

Passive low pass filter.
C = 470 nF, R = 100 kΩ, CF = 3.386 Hz
Task 5

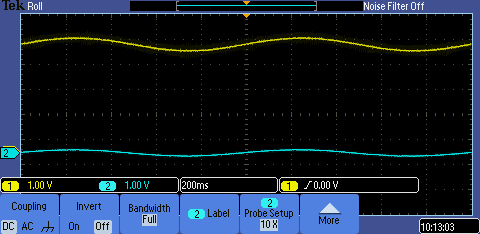

Passive high pass filter added to Task 4.
C = 4.7 uF, R = 100 kΩ, CF = 0.3386 Hz
Task 6
Filters with gain.

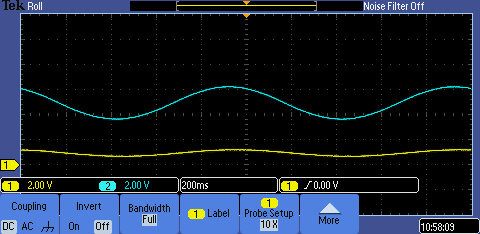

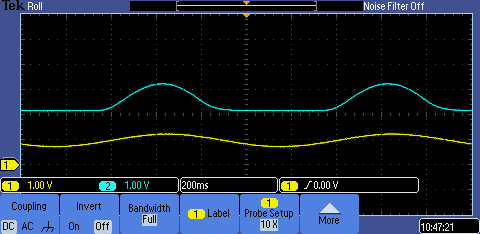

741 Op Amp @ 5V
741 Op Amp @ 10V

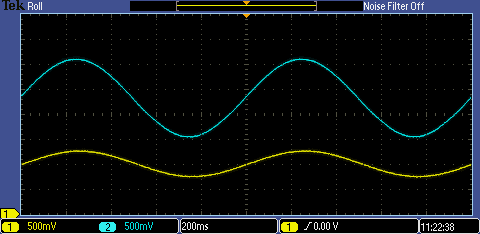

INA 128 PA @ 5V
