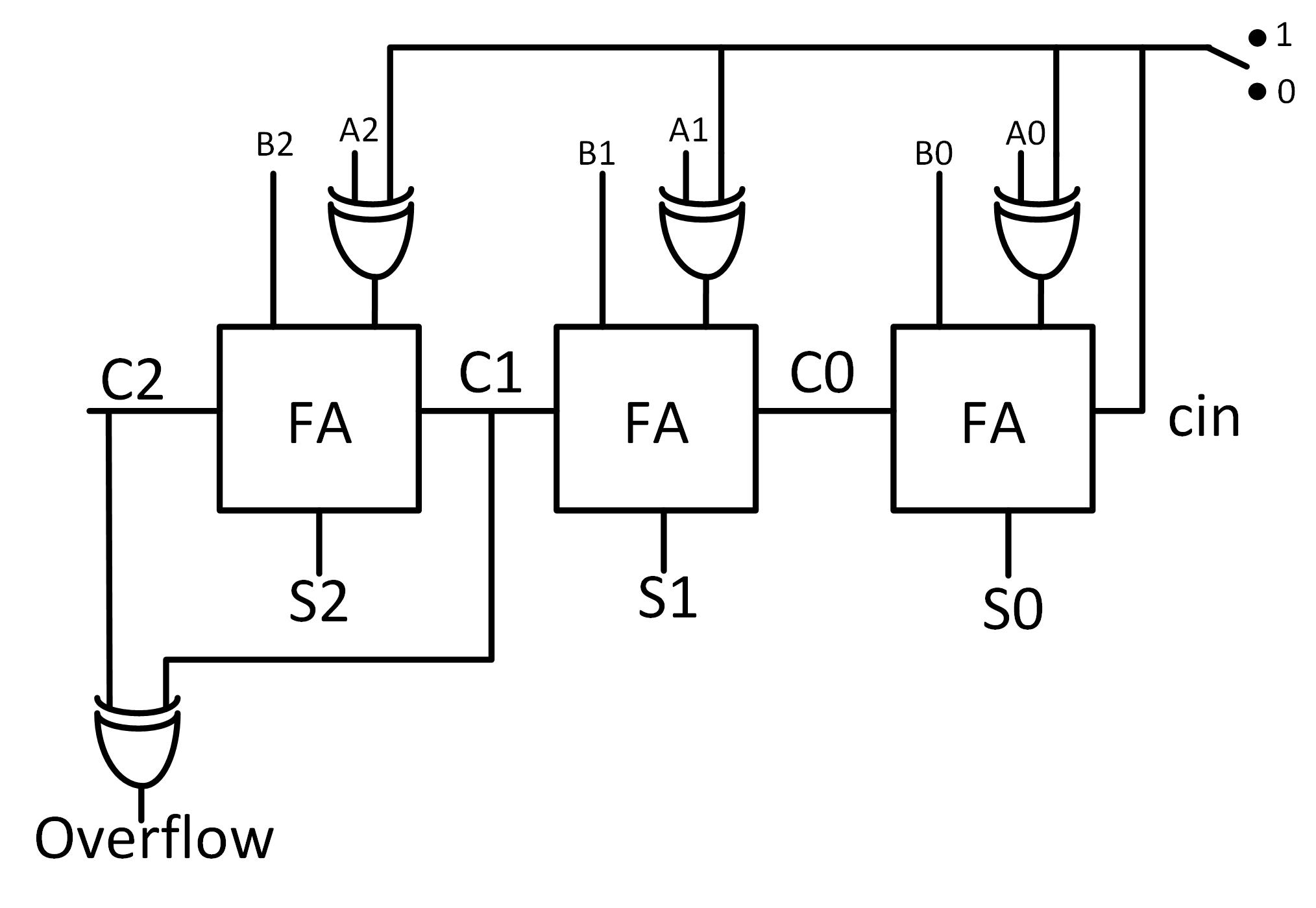

Understand the 3-bit adder/subtractor in 2's complement:

Addition/Subtraction of 2's complement signed binary numbers:

When the control bit is switched to '1', A XOR 1 = A not, so A is inverted, and plus 1 (at cin), which is exactly the 2's complement of A, the system will perform 'B+(-A)', which is 'B-A'; when the control bit is switched to '0', A XOR 0 = A, and cin=0, the system will perform 'B+A'.

Overflow:

As the definition of 'overflow', if you have negtive + negative = positive, or positive + positive = negative, then the result of the addition is out of range, you need an extra bit to represent the result. The overflow indicator will show you when do you need to count an extra bit.

Your code should be able to tell FPGA what is the extra bit in order to display the correct corresponding decimal number.

Step 1: (40 points)

Use switches as the 3-bit inputs, use 'leds' to show the binary results.

Step 2: (60 points)

Use switches as the 3-bit inputs, use seven-segment displays to show the decimal result, make sure have the 'minus' sign in front of the decimal number if the result is negative.

The verification should be recorded in videos in your html report.
