Week 10 Universal Serial Bus (USB)

1. Basics

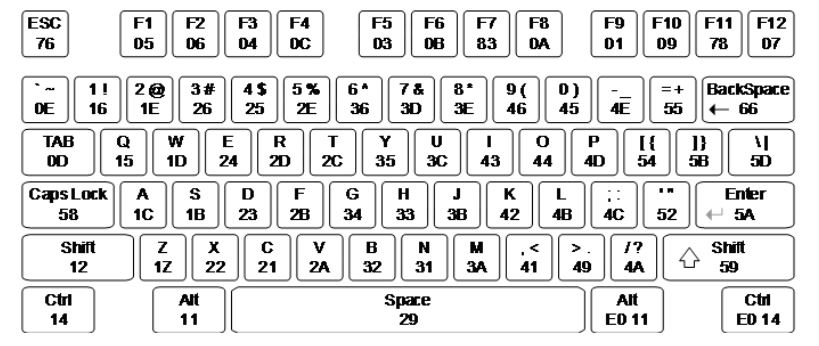

The user presses a key on the keyboard, this sends a keyboard PS/2 scan code to the Basys3 over the USB-HID port. This scan code is read and transmitted to a terminal application via the USB-UART bridge. When the key is released, a scan code of F0XX is transmitted, indicating that the key with PS/2 code XX has been released.
The Basys 3 board has a PIC24FJ128 microcontroller that provides USB HID host capability. We will use this option to develop the HDL projects here. Specifically, we will focus on interfacing a keyboard to Basys3 board since the PIC24FJ128 chip available on the board converts the USB input to standard PS/2 signals to communicate with a mouse or keyboard. Here, the Basys3 board will be the receiver. The keyboard will be the transmitter. Therefore, we will focus only on the USB-receiving module next.

The transmitted code is called a scan code and is further sub-classed as a 'make' code in the case of a key being pressed. If a key is held down without being released, the make code for that key will be sent continuously, in accordance with the defined auto-repeat (typematic) rate. It should be noted that if more than one key is pressed and held down, typematic mode only applies to the last key pressed. When a pressed key is released, an additional scan code is sent to the host to let it know that the key that was pressed has now been released. This additional transmitted code is called a 'break' code.

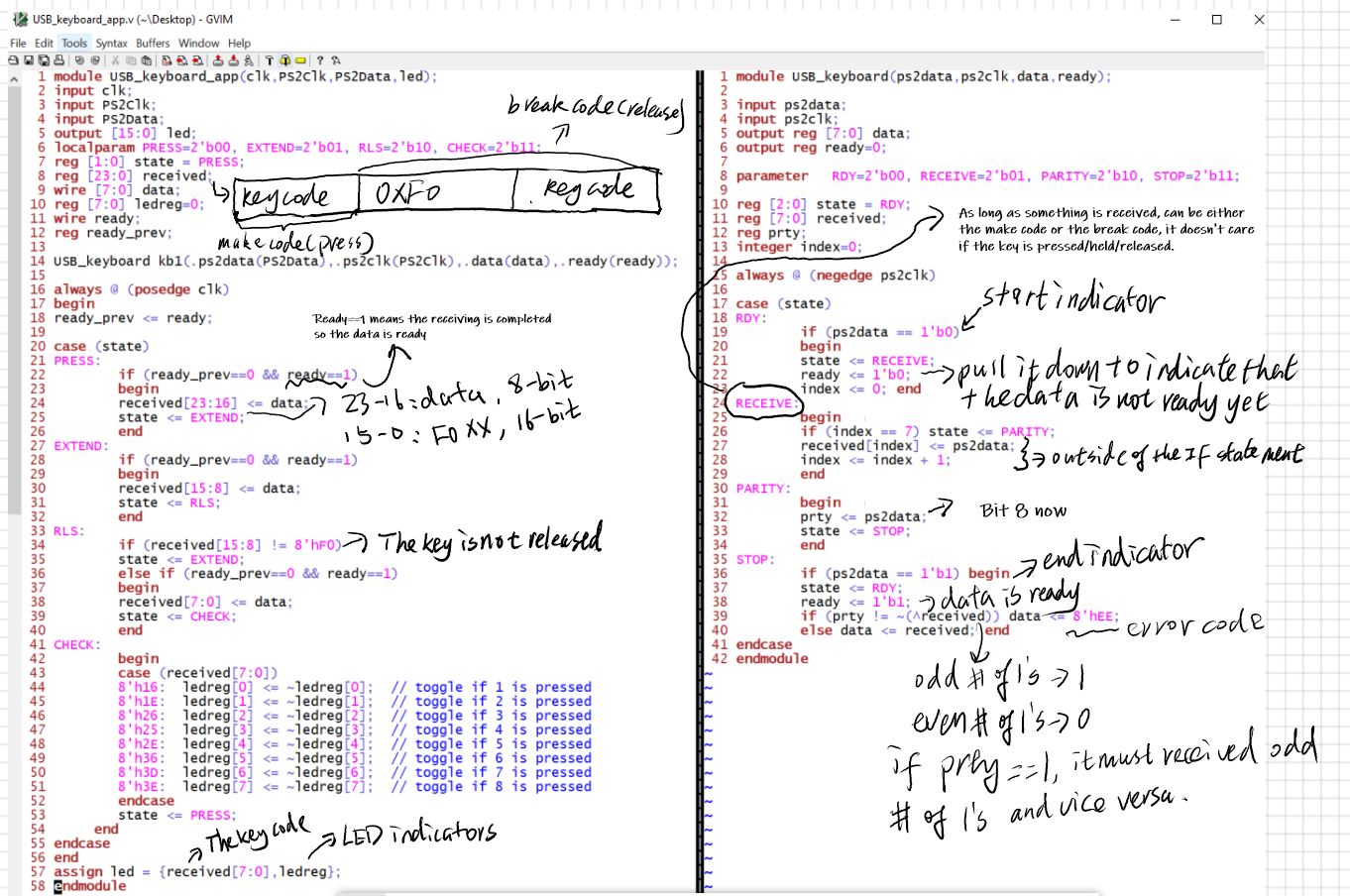

In the "STOP" state, the partiy checker is an odd parity checker. Line 39 means it reports error if bit "prty" is not equal to ~^received.

The demonstration:

2. Send the Scan Code to a seriial terminal

We can combine the UART tx module here to display the key values on the serial monitor.

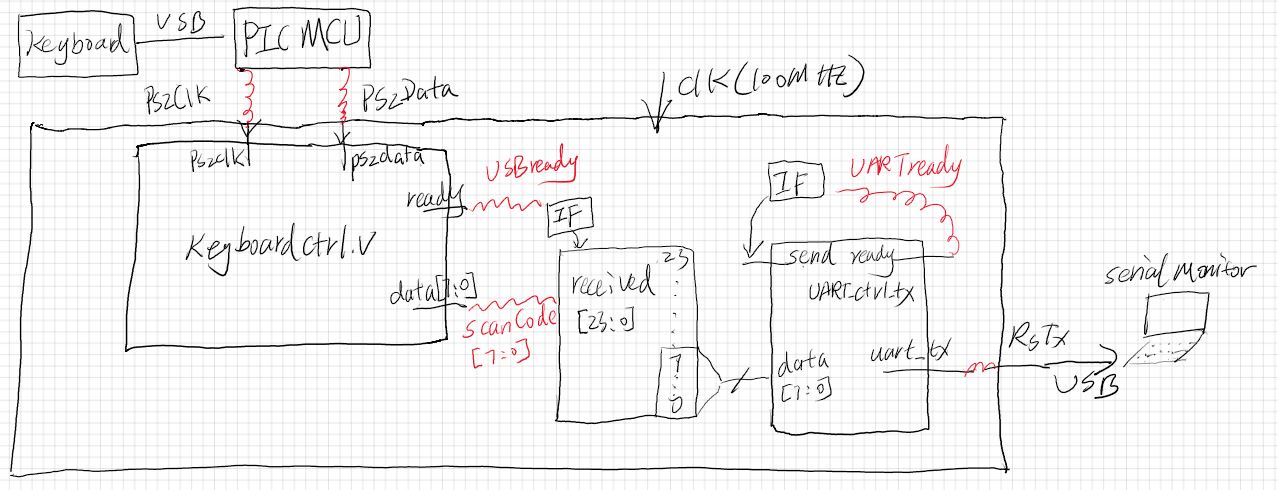

Draw the system diagram helps the desgin of the RTL:

Here is the video demonstration.

1. Repeat the work in Section 1. (10 points)
2. Design the testbench and the scan code to ASCII converter to display key values on the serial monitor. (90 points)

1. Digilent USB and Keyboard
