Lecture 26 Binary Basics & Review of Voltages and Currents

1. Review of Fundamentals of the Number System (not about Python but required for understanding binary and digital logic)

In mathematics and digital electronics, a binary number is a number expressed in the base-2 numeral system or binary numeral system, which uses only two symbols: typically 0 (zero) and 1 (one).

Base 10 counting system:
We happened to use the current counting system, because we happened to have ten fingers.
If dinosaurs had ruled the earth, they would be happy to use a 8-based counting system..


What does 157 mean? 157 = 1 x 100 + 5 x 10 + 7 x 1 = 1 x 10^2 + 5 x 10
^1 + 7 x 10^0

Imagine a specie that only has two fingers. how can they count? A computer is such kind of two-finger specie. 0 and 1 Each place is the exponential of 2.

Base 10: 157: 157 =
1 x 10^2 + 5 x 10^1 + 7 x 10^0

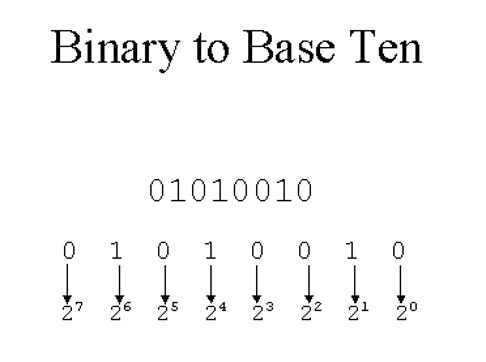

Base 2: 1011 = 1 x 2^3 + 0 x 2^2 + 1 x 2^1 + 1 x 2^0

1 bit is a single bit of information, a 1 or 0. Only two possible values.
1 byte is 8 bits, an 8 bit word
256 possible values from 0-255 base 10 or 00000000 to 11111111 base 2
10100110 is a single byte

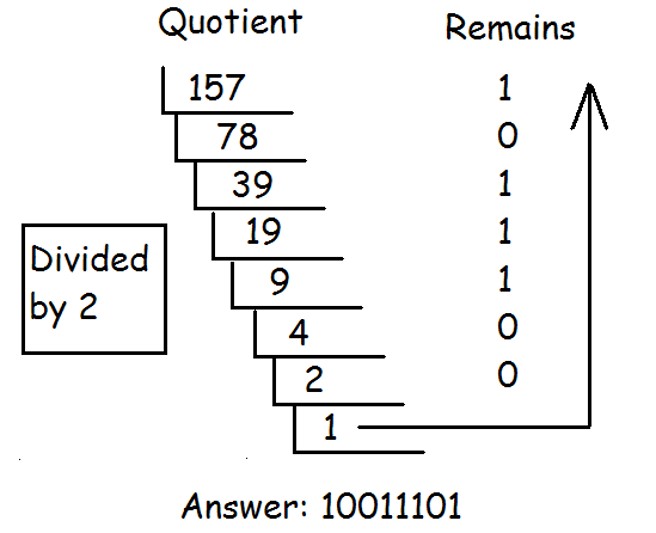

Base 10 to Binary

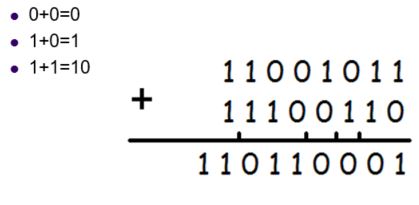

Binary mathematics


Hexadecimal (base 16):

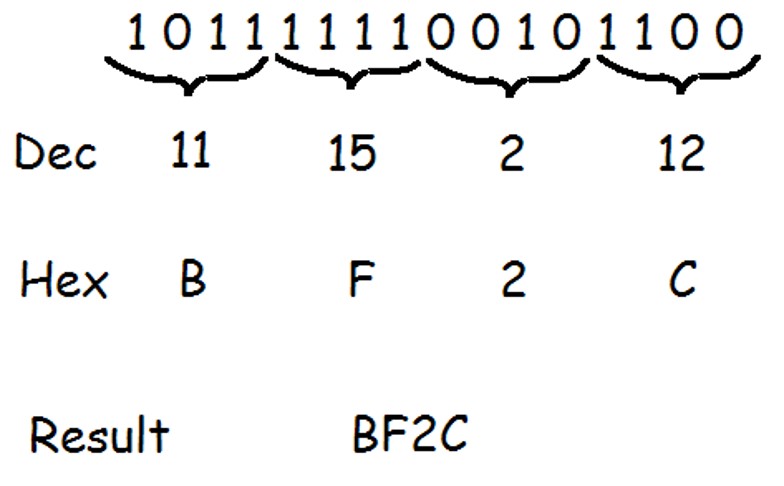

Binary code is too long in representation. Hex is much shorter. Converting a binary number to a Hex number is relatively easy. Every 4 bit can convert to a Hex.
Problem: we are short of numbers A-10 B-11 C-12 D-13 E-14 F-15

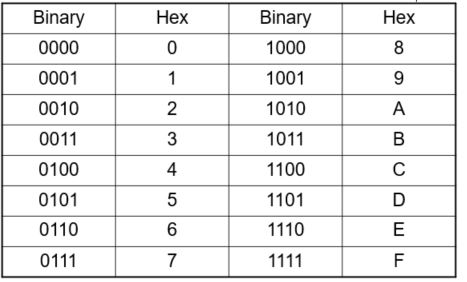

Lookup table:


Example:


2. Review of Electrical Voltage and Current (This is not about Python but will be required for programming Raspberry Pi using Python)

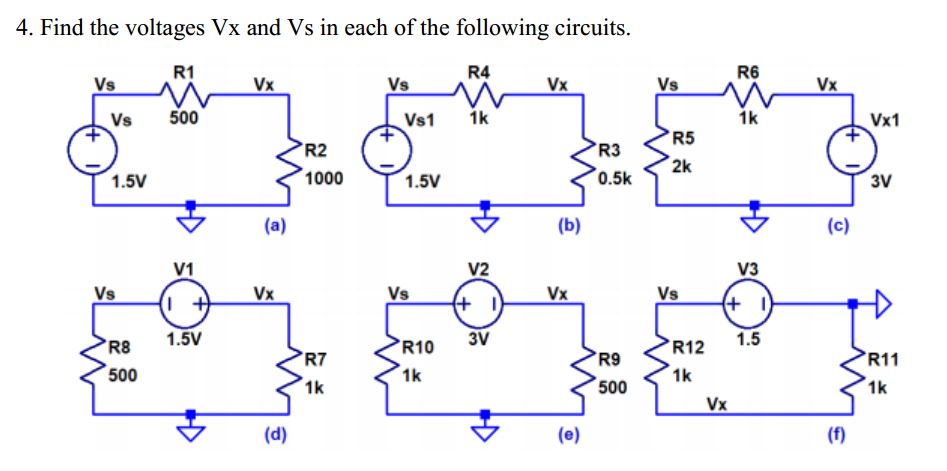

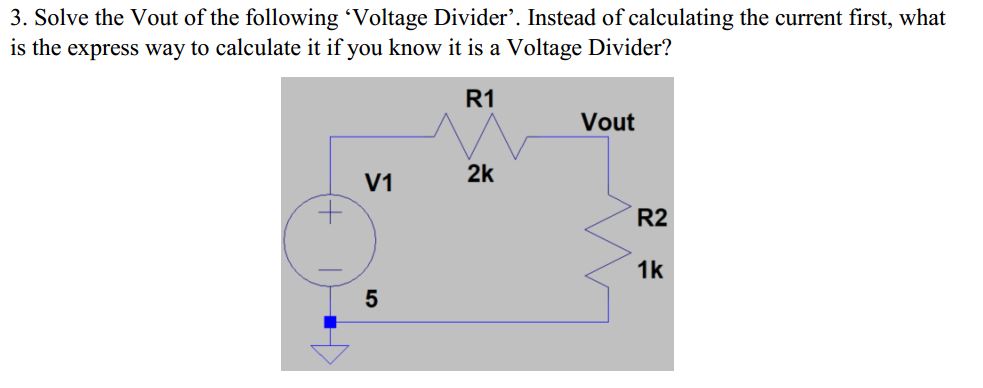

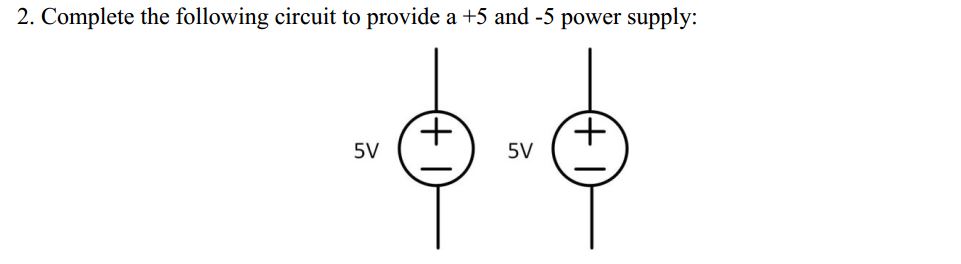

We'll go through the examples as follows:












Tasks:
(Show the calculation process for the credit. Complete these problems on papers)

1. Convert the following binary numbers to decimal numbers: (1) 1011 (2) 1000 (3) 1111 (4) 1011001 (5) 1000000
2. Convert the following decimal numbers to binary numbers: (1) 10 (2) 8 (3) 16 (4) 52
