1. Building an d Simulating NMOS & PMOS Transistors in ElectricVLSI for ID Curves
2. Introduction
In this lab we were tasked with designing NMOS and PMOS transistors in
ElectricVLSI and running simulations on them for their respective ID
curves.
3. Materials and Methods
ElectricVLSI was used to design the NMOS and PMOS circuits. LTSpice was
iterfaced with the ElectricVSLI to run the simulations on the circuits.
NMOS nad PMOS transistors were selected from the component list in
their respective schematic drawing in ElectricVLSI.
The transistors had to be changed from their default setting to a
4-terminal configuration. NMOS and PMOS transistors were then selected
from the component lists in their respective layout drawings in ElectricVLSI. Both layouts erquired two Acts. TwElectricVLSIo
nActs for the NMOS transistor, and two pActs for the PMOS tranistors.
These would be the sources and drains for the transistors. The NMOS
transistor was connected to the lowest potential in the circuit, the
ground. The PMOS was connected to the highest potential in the circuit.
The gate of the PMOS was connected to a metal pad, becoming the
terminal of the circuit. The PMOS also required a pwell to connect
substrate to the highest potential in the circuit.
Each node on the layout had to labeled and exported to allow LTSpice to
run simulations on the circuits. Numerous ERC well checks were ran to
verify there were no errors in the circuit that would prevent the
simulation from being ran. The LTSpice simulation was ran utilizing a
the DC sweep function from 0-5V for the gate voltages.
4. Results
![](nmos_sch.JPG)

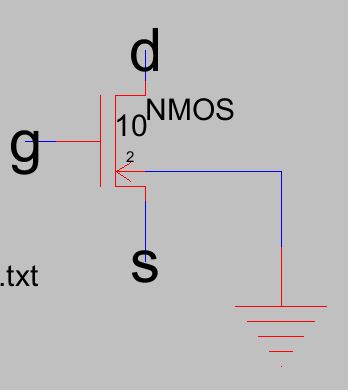

Figure 1: The Electric VLSI NMOS schematic.
![](nmos_lay.JPG)
Figure 2: The Electric VLSI NMOS layout.
![](F2nmos.JPG)

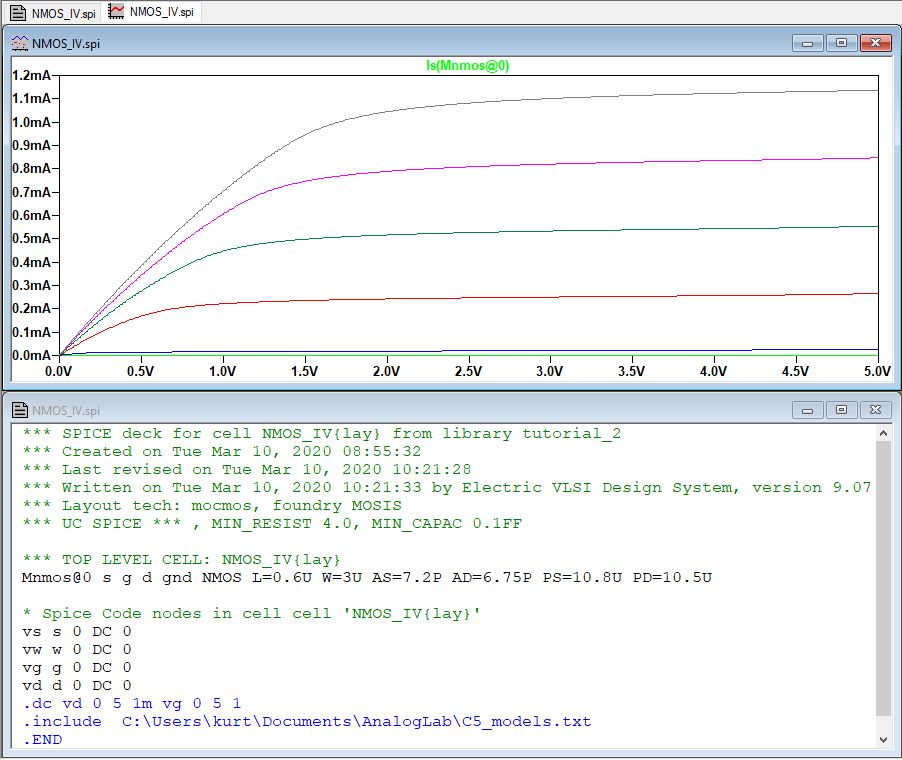

Figure 3: The LTSpice simulation of the NMOS ID curve.
![](F3nmops_id.JPG)

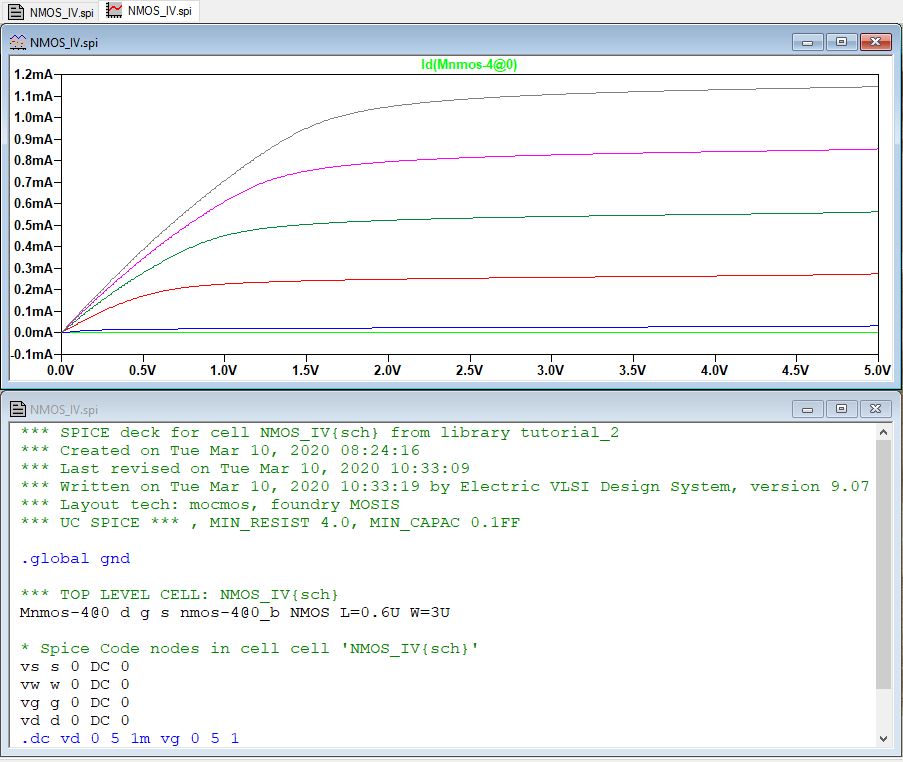

Figure 4: The LTSpice simulation of the NMOS-4 ID curve.
![](pmos_sch.JPG)

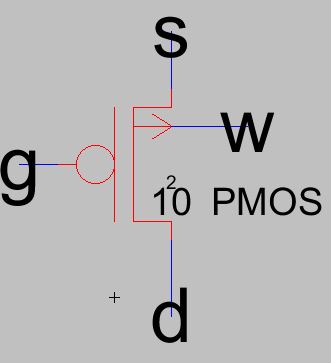

Figure 5: The Electric VLSI PMOS schematic.
![](pmos_lay.JPG)

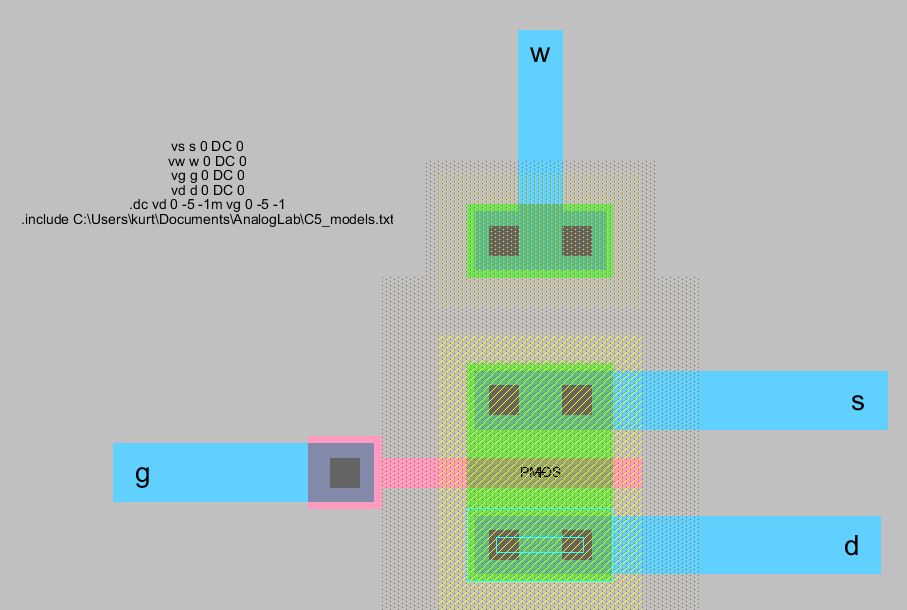

Figure 6: The Electric VLSI PMOS layout.
![](F1pmos.JPG)

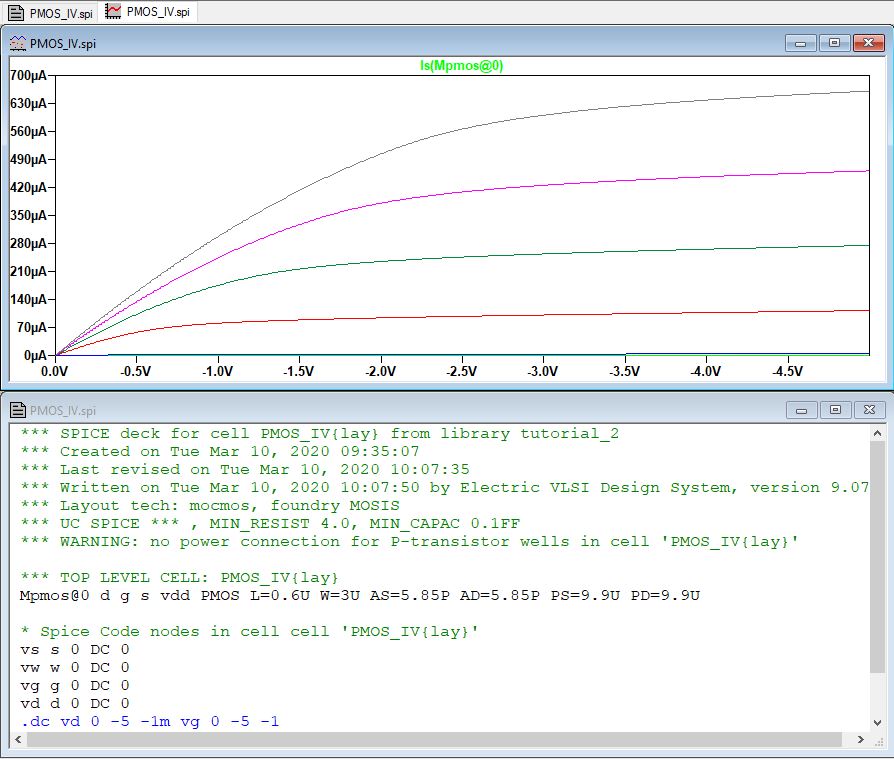

Figure 7: The LTSpice simulation of the PMOS IS curve.
![](F4pmos_is.JPG)

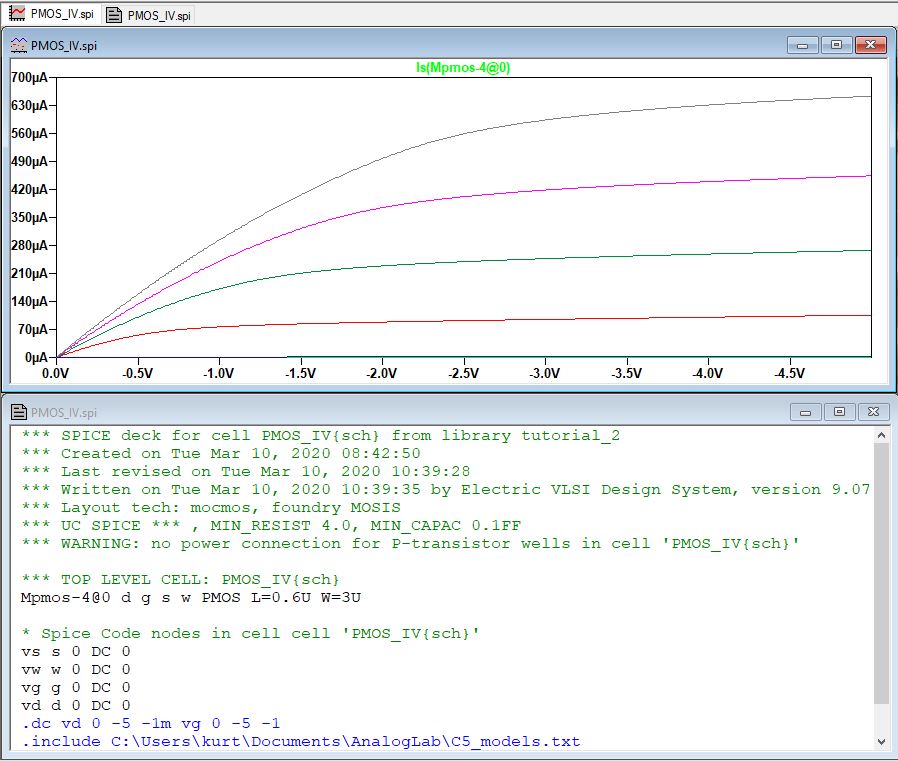

Figure 8: The LTSpice simulation of the PMOS-4 IS curve.
5. Discussion
The results
form the simulation were as expected, after seeing the ID, and Is
curves in previous work done in class. It is owrth mentioning that the
manner in which LTSpice defines the direction of current flow can lead
to a ID or IS curve being inverted due to polarity. What is important
it to recognize the linear region and saturation regions of the curves.
The linear regions are where the voltage is increasing. The saturation
regions are where the current is leveling out a the peak values of the
curves. The NMOS transistors increasesd VGS as the DC voltage is swept
through the circuit. At low voltage there is no curent flow due to the
threshhold voltage not being overcome. The same attributes were
demonstrasted for the PMOS transistors.
This lab built upon the previous lab. This lab wil become the building
block for the next lab, until all the layers are designed and build for
the ultimate goal of being bale to design and build a semiconductor.
