Week 7 Universal Asynchronous Receiver/Transmitter (UART)

1. Understand the UART protocol

Being asynchronous, the UART does not need a common clock between the transmitter and receiver. Thus, connected devices can work independently. The serial pin of the transmitter is generally called transmit (TX). The corresponding receiver pin is generally called receive (RX). The connection between the transmitter and receiver is established by physically wiring these two pins.

The transmitter module will be basically a shift register that loads parallel data and shifts it in a specific rate through TX pin of the device. The receiver module will convert the received serial data through RX pin into parallel form to be processed by the receiver.

Data is transmitted in terms of packages in the UART. Data framing of a UART package begins with a start bit, followed by seven to eight data bits optionally attached by a parity bit (explained in Sec. 8.6), and concluded by one or two stop bits.

as the transmission starts, the receiver should know the duration of each pulse in the UART package. This is set by the baud rate which determines the timing. The baud rate is denoted by bits per second (bps). For example, a 2400-bps indicates a 416-Ás bit width (or period) in the UART transmission.

The TX pin should be at logic level 1 when the transmitter is in idle mode. Once transmission starts, a falling edge is created on the data transmit line which wakes up the receiver. Afterward, the clock is set according to the baud rate and all bits are sent one by one in every clock cycle in the transmitter side. The receiver should have the same baud rate for receiving transmitted bits sequentially. As the transmit operation finalizes, the TX pin should be set to logic level 1 for one or two bit widths to informthe receiver that the transmission is done. These are also called stop bit(s). The number of stop bits and usage of parity bit should also be predetermined so that the transmitter and receiver have same settings.

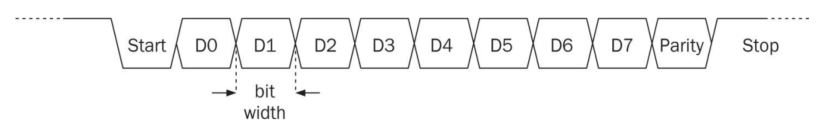

The data format is shown below:

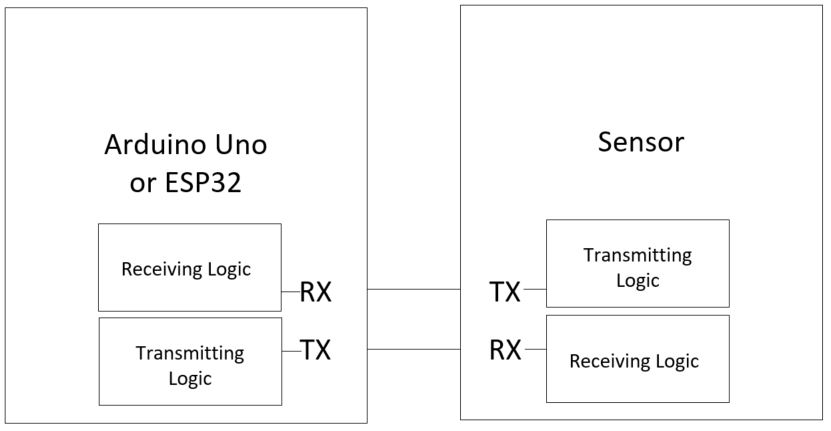

Each device should have both the Receiving module and the Transmitting module. The connection between two devices are RX - TX, and TX - RX.



If you don't have a textbook, please print out this PDF to study the UART protocol.

2. To implement the transmitter

To implement a design in Verilog, you must design the FSM (Finite State Machie) first. In practice, you don't have to draw all the details on the state diagram at once. You can draw the critical states and transitions first, then code it up in Verilog. Once the essential part of the Verilog code is done, you can wrap it up by completing the signal declaration etc.

Keep in mind that nothing will be done until 'send ==1'. When the 10 bits are sent, it will come back to the RDY state to standby.



The debounce module in Verilog from listing 9.20 on Page 269. The 650000 parameter creates a 6.5 ms delay because 650000 / 100 MHz = 6.5 ms. There is a little inaccurate information in the handdrawing below. The 6.5 ms starts after the pulses. It waits for 6.5 ms after there is no signal change.

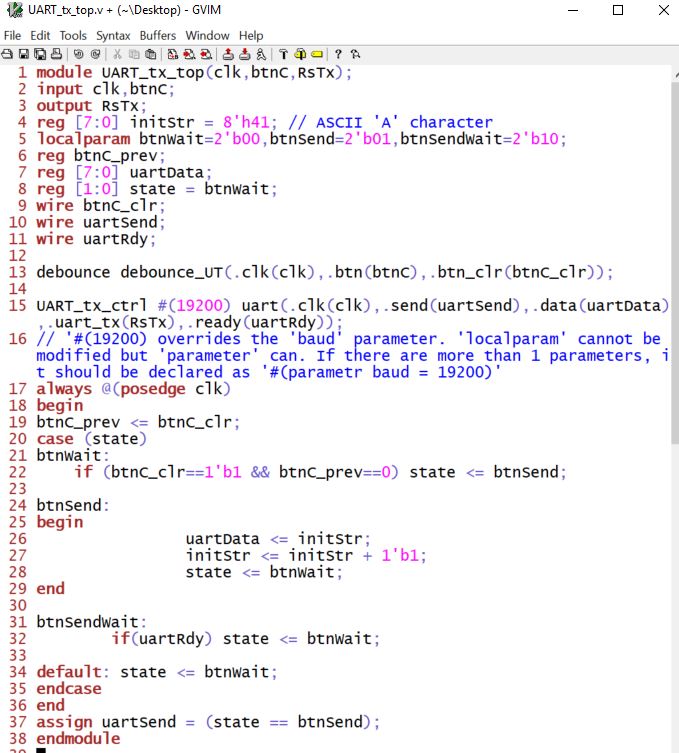

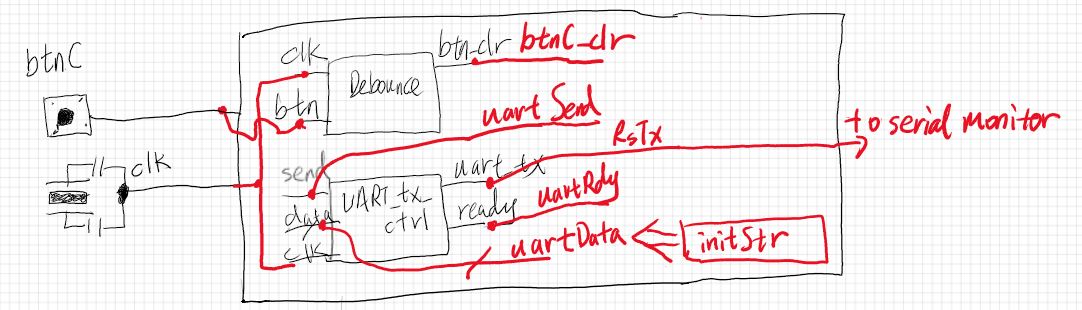

The top level design:



This top module will send ASCII code of letters/symbols to the Arduino serial monitor on a laptop/desktop.



In the script above, I don' tthink the 'btnSendwait' state is being used. I think you can ignore that part. It didn't affect the result because your pressing is way slower than the data transmission rate so it is always ready to send the next byte.

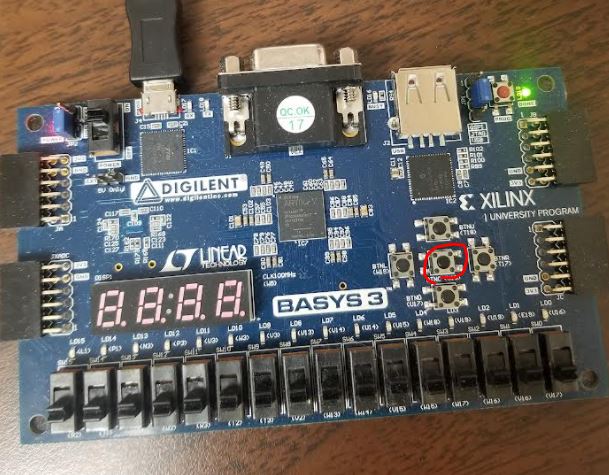

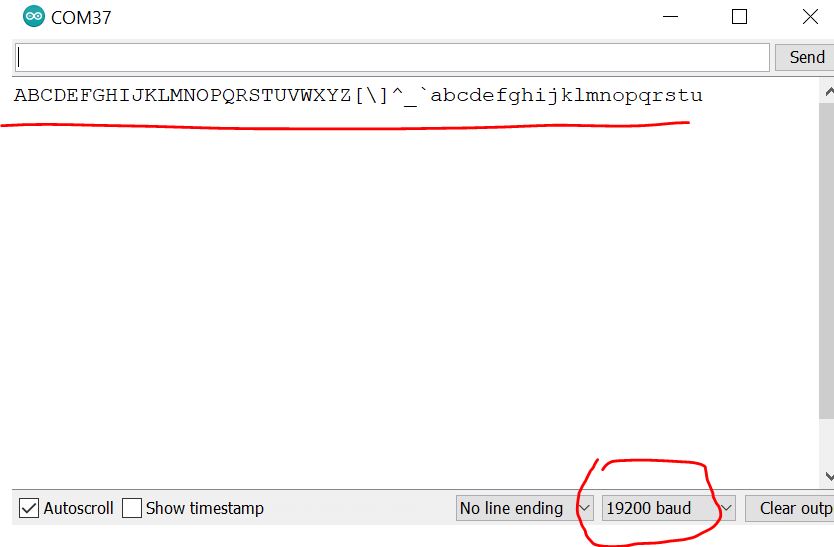

Keep pushing btnC, you will see all the ASCII code starts with letter A. (Use the Arduino serial monitor).





3. To implement the Receiver

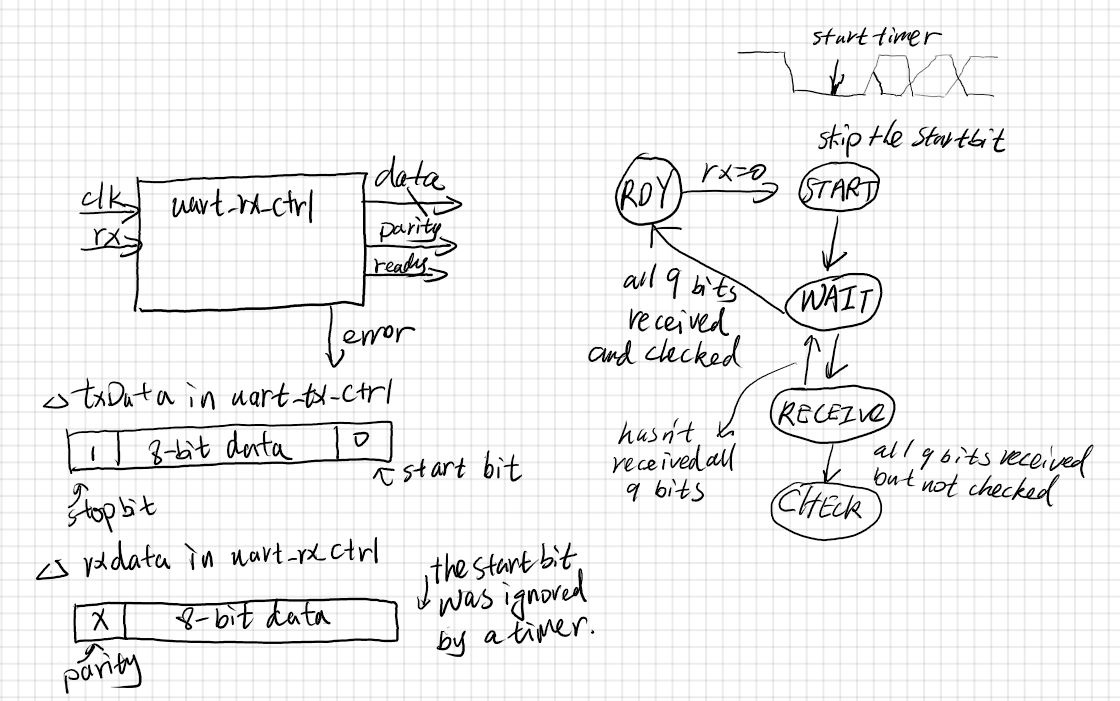

The state diagram and the script.



The 'START' state checks if it reaches baud_timer/2 because it is trying to clear the timer and start the timer in the middle of the data for sampling. Timer is cleared here so it always counts to baud_timer when it is at the middle of the next bit.

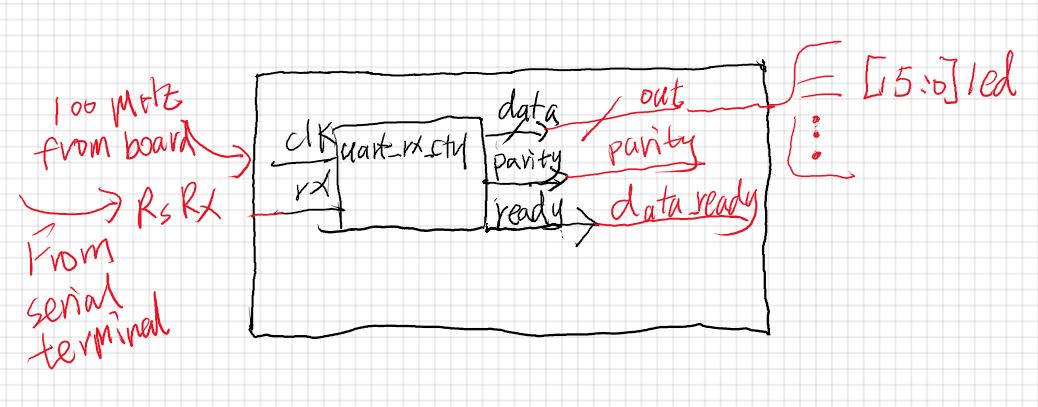

The top module:





Remove the other files added to the project previously and add UART_rx_ctrl.v and UART_rx_top.v to the project.



Run the standard procedure:

Synthesis - Implementation - Gnerating Bitstreams - Open Hardware Manager - Program Device

We need to set the parity to be Even Parity. The Arduino terminal doesn't have this option for users so I switched to Tera Terminal.

Download the Tera Terminal from here:
https://ttssh2.osdn.jp/index.html.en

Making the following changes: Setup - Serial port



The received data is written to the first eight bits of led. The parity bit is represented as the ninth led entry. If a transmission error occurs, it is indicated in the tenth bit of led. Last six bits of led are used to show how many packages have been received from the host PC.

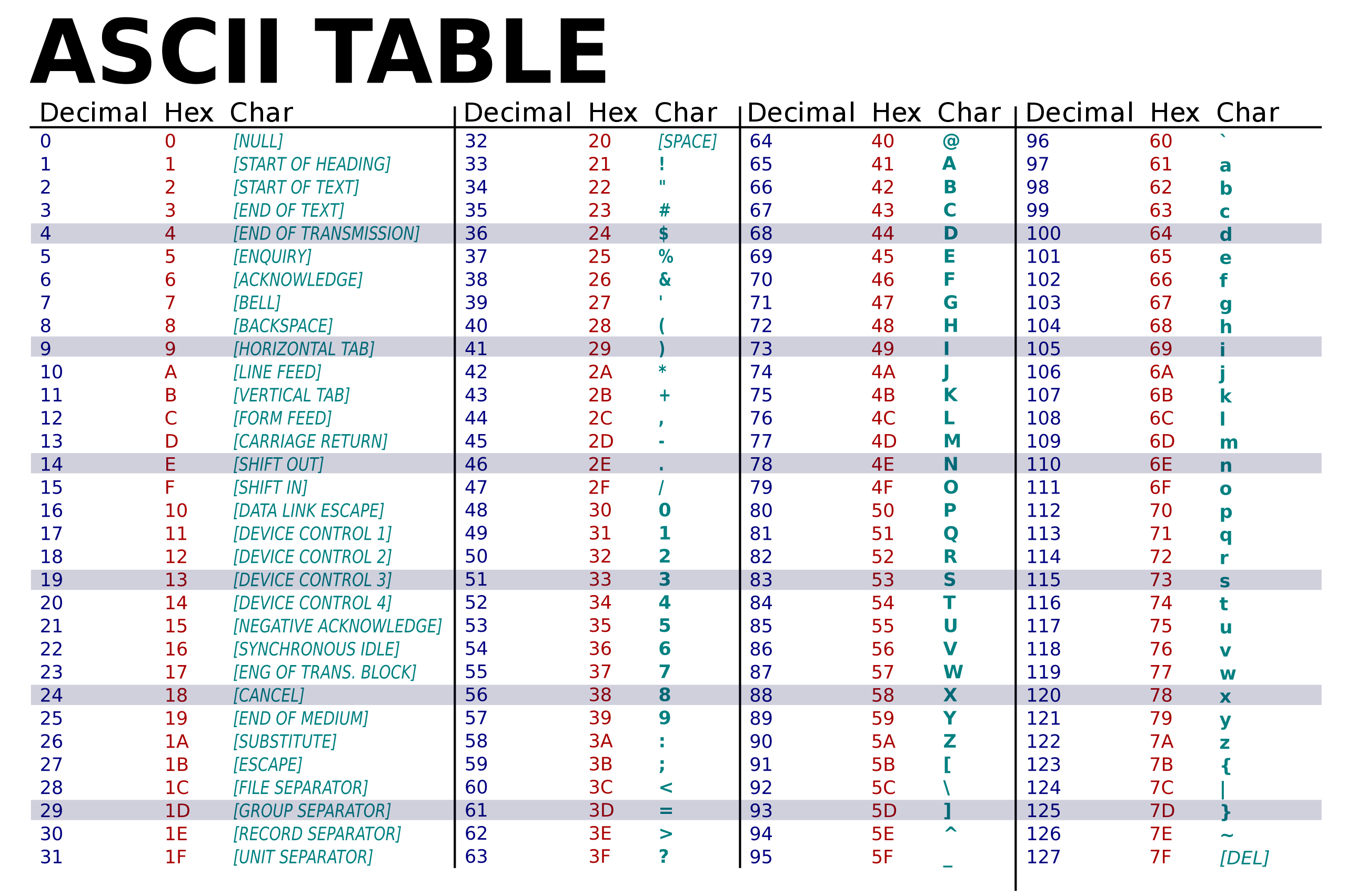

The ASCII table

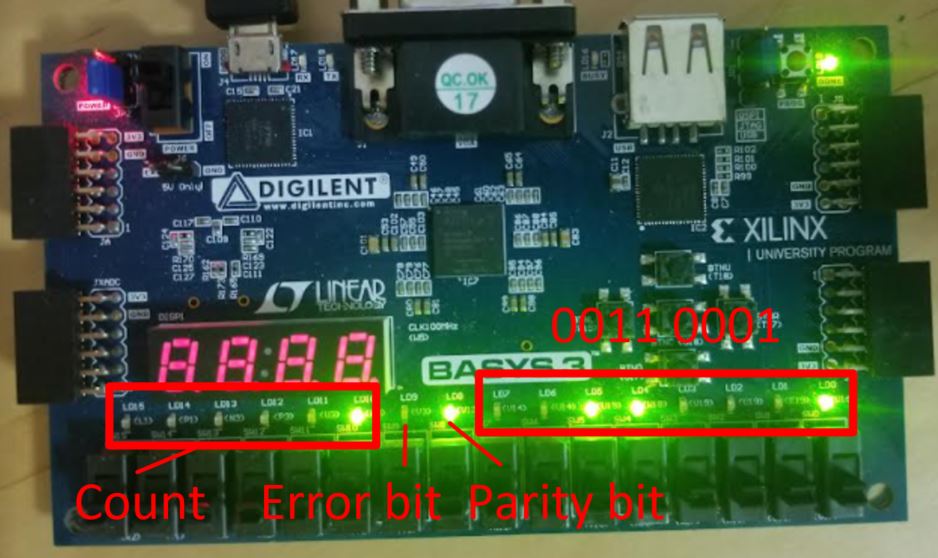

The Character '1' is 49 (Dec) or 31 (Hex). Hex is easier to find - Ox31 is 0011 0001. I typed '1' in the terminal window and I got the following LEDs lightened up on the board:

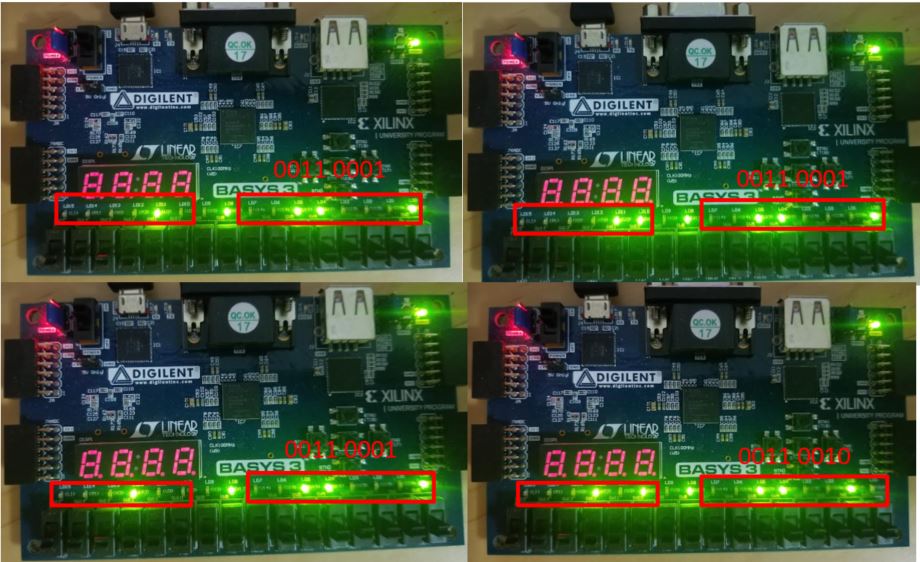

The ASCII code for '2' is 50 (Dec) or 32 (Hex), Ox32 is 0011 0010. I typed 3 more '1's in the terminal and finally I typed a '2' there. I received the following results which are what I expected.







-------------------------
Tasks:
1. In section 2. use the debounce module to create a counter. When the user press the button once, it shows a '1' on the seven segment display. If the user keep pushing the button, the display increments by 1 until 9 then it resets to 0.(25 points)
2. Repeat the UART transmitter in Section 2 to show letters/symbols in the serial monitor. (25 points)
3. Repeat the work in Section 3. (25 points)
4. Show the numbers you typed in the serial monitor on one seven segment display unit (less than 10). (25 points)
